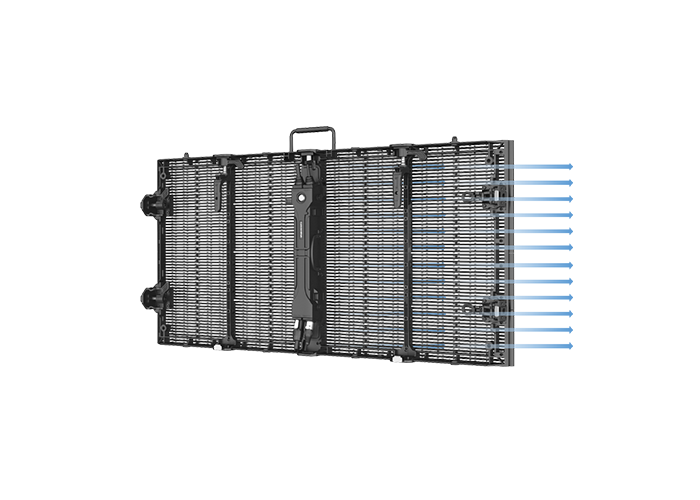

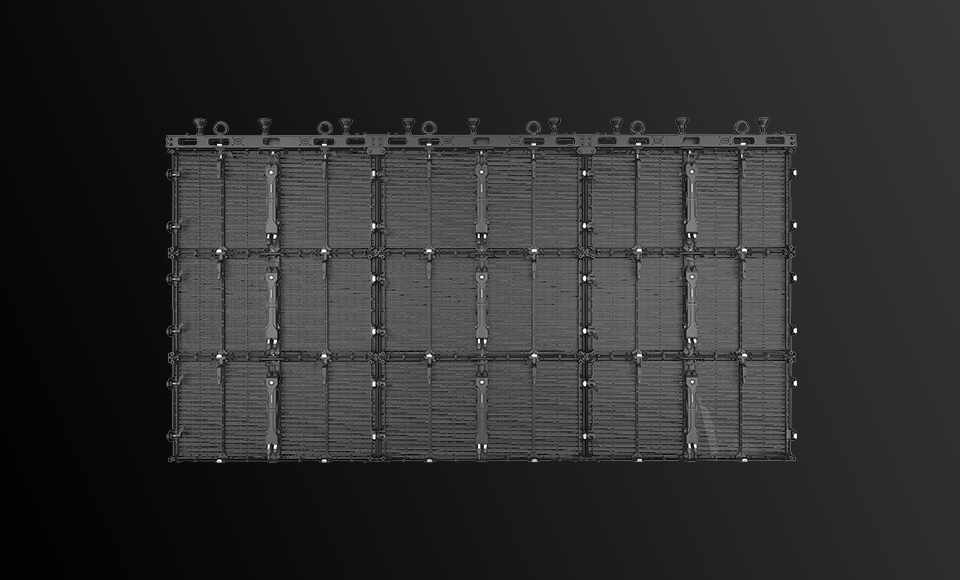

Gloshine's transparent LED screen allows wind to pass through its gaps, effectively reducing wind pressure and ensuring stable performance even in outdoor or high-altitude installations.

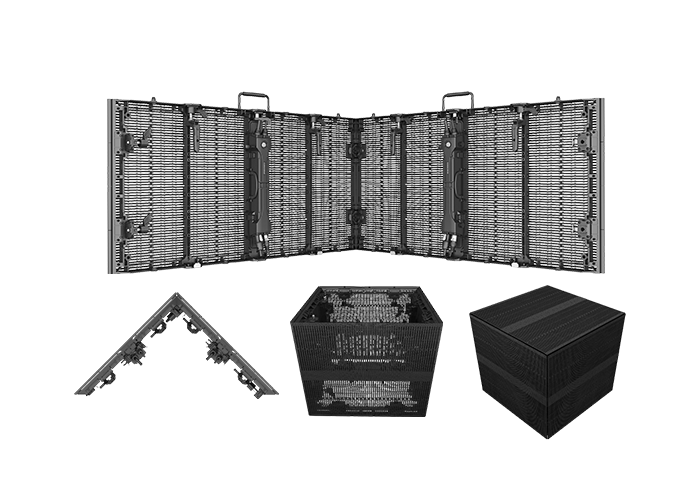

The transparent LED screen is engineered to fit various structural shapes, including cubic columns, cubes, and "L" shapes. It allows seamless integration with complex architectural layouts, enhancing both spatial efficiency and visual appeal in creative installations.

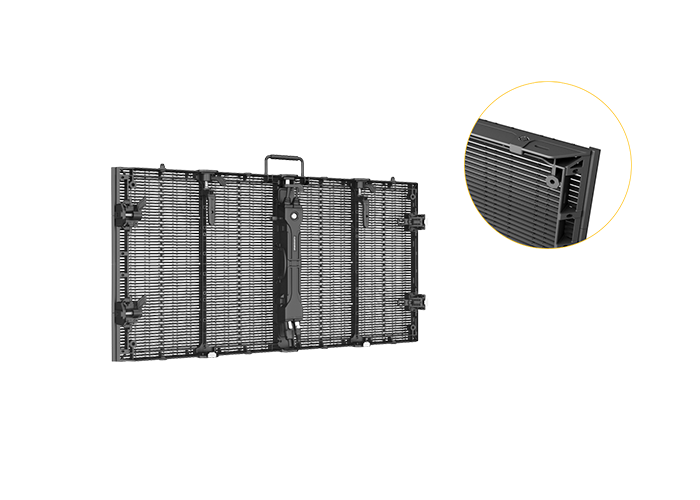

Featuring a magnetic design, the transparent LED screen allows quick and effortless cabinet alignment during installation.
The Vanish series transparent LED display features contrast ratio of up to 6000:1 and over 35% transparency. Its design supports creative display applications while maintaining clear, vivid visuals.

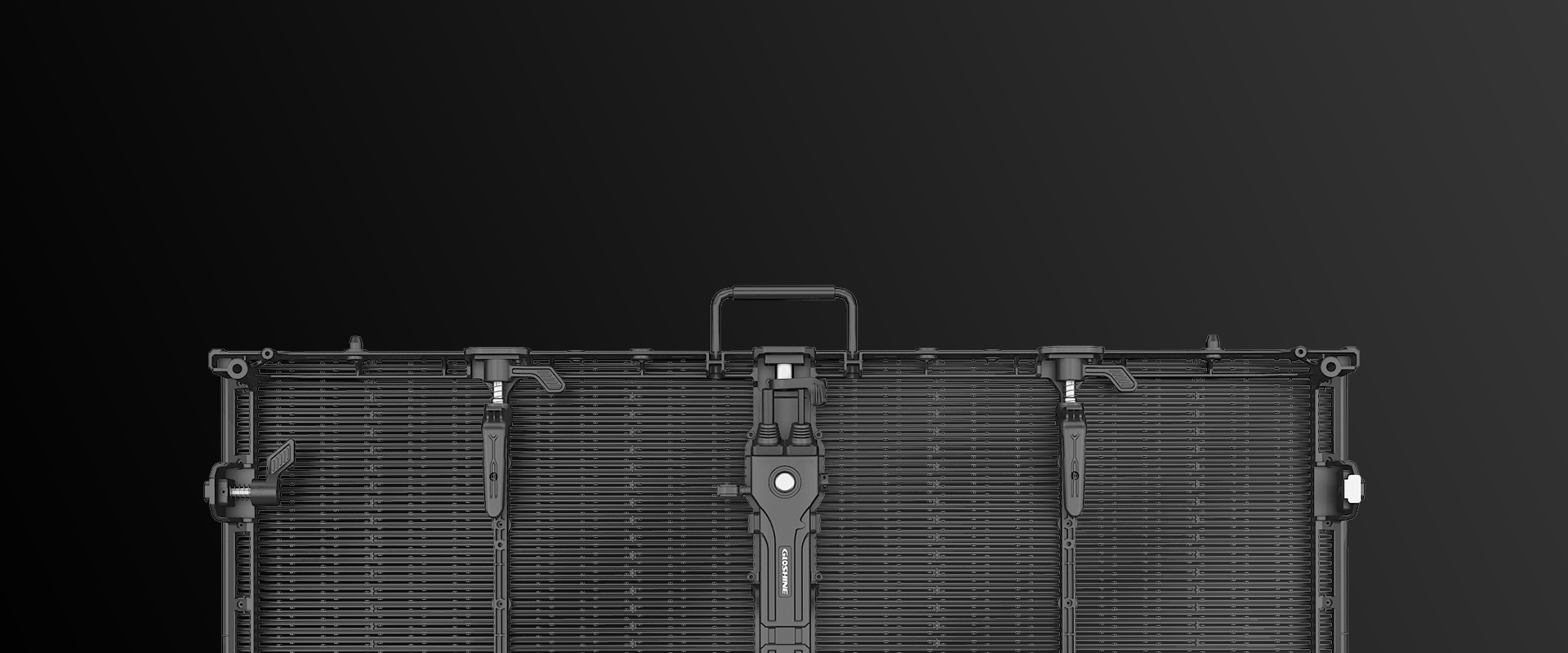

The Integrated power box makes replacement and maintenance easy and efficient. Ensuring your transparent LED screen is always in top shape.

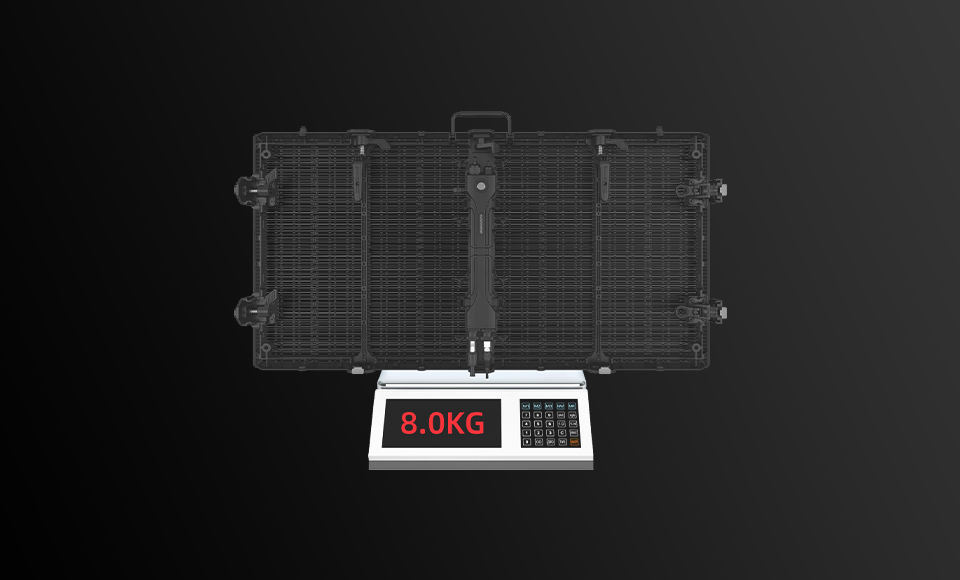

Vanish Series LED screen measures 500x1000mm, and weighs only 8.0kg.

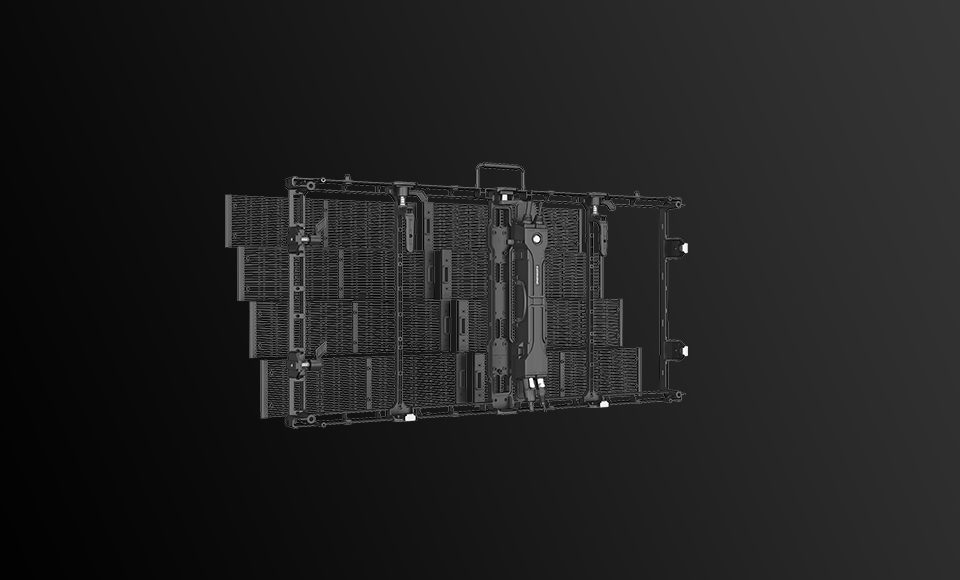

Special module design ensures extreme durability for easy transportation and quick installation.

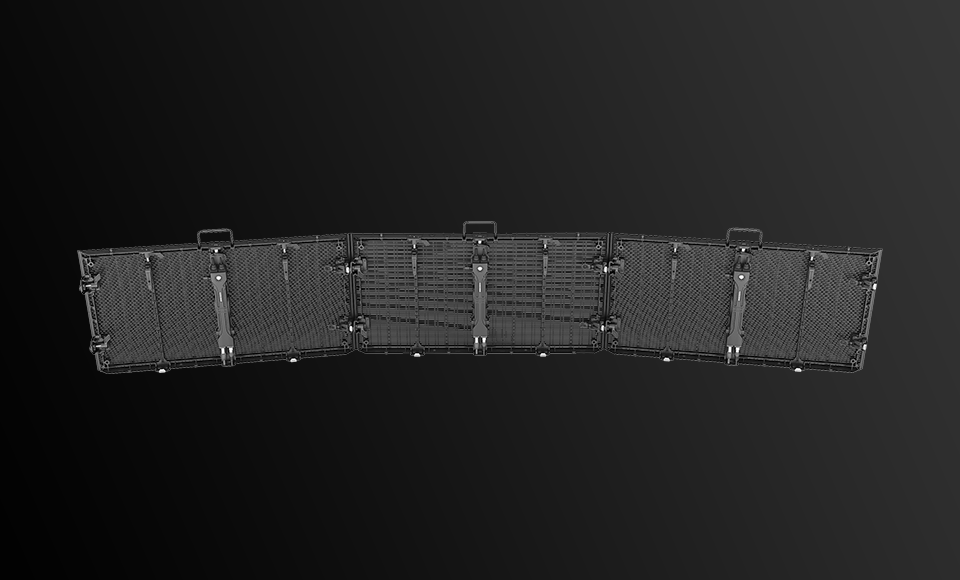

Easy installation for concave or convex configuration. Vanish Series transparent LED screen Offers infinite possibilities for your projects.
|
Model No. |
VA3.91-7.81 |
VA8.93 |
|
Pixel Pitch |
3.91-7.81mm |
8.93-8.93mm |
|
LED Type |
SMD1921 |
SMD1921 |
|
Pixel Density |
32768 pixel/㎡ |
12544 pixel/㎡ |
|
Panel Resolution |
256*64 pixel |
112*56 pixel |
|
128*64 pixel |
56*56 pixel |
|
|
Scan Rate |
1/16 or 1/8 |
1/4 |
|
Brightness |
General Brightness for Black LEDs:1200-1500nits |
General Brightness for Black LEDs:1200-1500nits |
|
Transparent rate |
About 35% |
About 35% |
|
Color Temperature |
6500-9500K |
|
|
Panel Dimension |
VA mini:500mm*500mm*78mm VA:1000mm*500mm*78mm |
|
|
Panel Weight |
VA mini:5.1kg±10% VA:8.0kg±10% |
|
|
Cabinet Material |
Die casting Aluminium |
|
|
Max Power Consumption |
≤360w/㎡ |
|
|
Ave Power Consumption |
≤120w/㎡ |
|
|
Viewing Angle |
H:160°V:140° |
|
|
Refresh Rate |
3840Hz/7680Hz |
|
|
Gray Scale |
14-16bit |
|
|
Working Voltage |
AC100-240V~50/60Hz or AC200-240V~50/60Hz |
|
|
IP Rating |
Front IP65,RearIP54 |
|
|
Protection technology |
Potting process with pre- and post-process protection |
|
|
Curve |
Curved cabinet:-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° |
|
|
Max Stacking/Hanging |
10m |
|
|
Lifetime |
50000h |
|
|
Operating Temp/Humidity |
-20℃~+40℃；10%~90%RH |
|
|
Storage Temp/Humidity |
-40℃~+60℃；10%~60%RH |
|
