Product Music Video Pro Series

Music Video Pro Series

  • XR Virtual Studio

  • Curved

  • Ultra wide angle of view

  • Easy Maintenance

  • 4K

Structure

Size & Weight

Rotating curved locks

Special locks and cabinet design enables the arcable cabinet and straight cabinet to joint together.

Adjustable angles:<-7.5°,-5°,-2.5°,0°,2.5°,5°,7.5°>

Quick Maintenance

The MV Pro series adopts the magnetic module to realize the rapid maintenance.

Seamless screen

Seamless connection

The smooth screen, show the best visual experience.

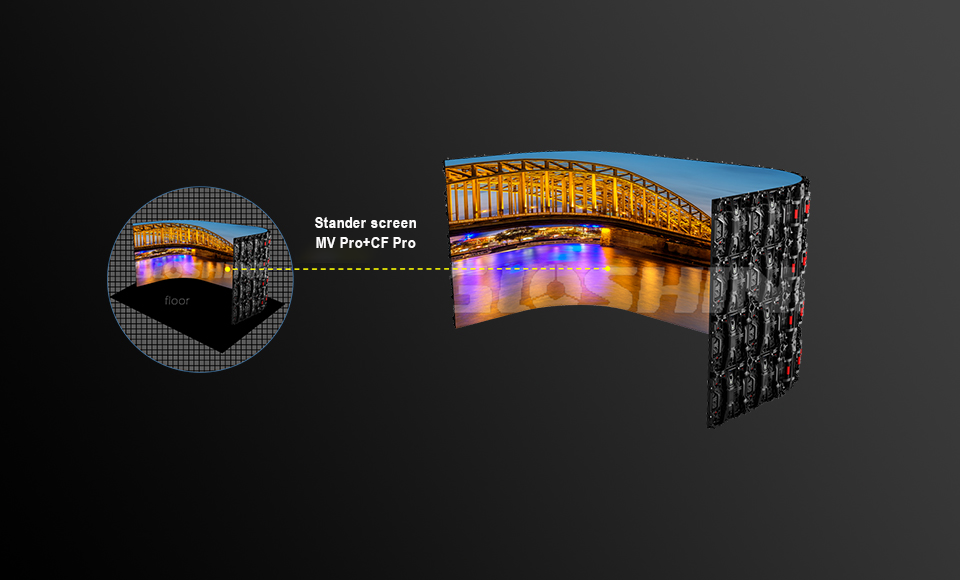

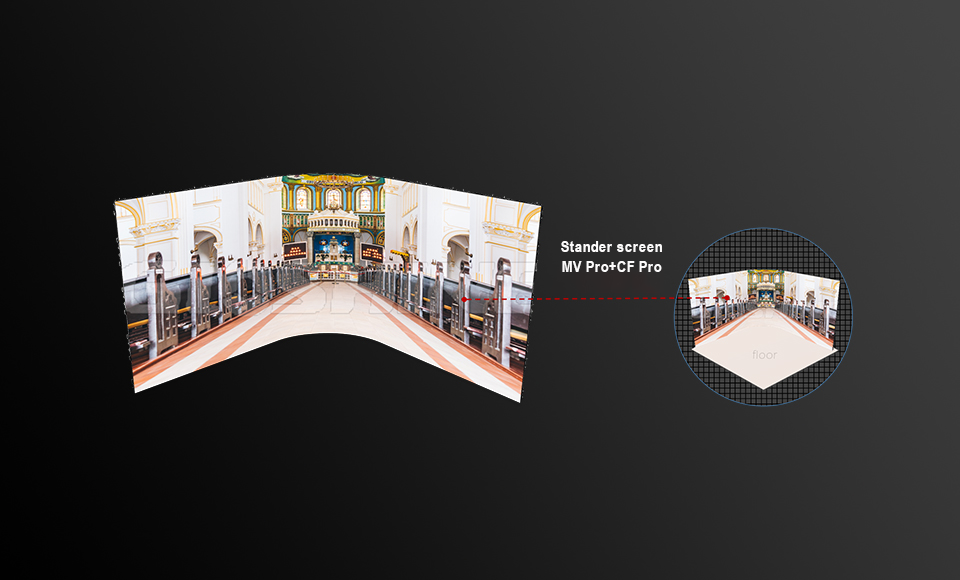

Multiple installation

MV Pro + CF

Technical parameter

Model No.

MV Pro 1.2

MV Pro 1.5

MV Pro 1.9

MV Pro 2.3

MV Pro 2.6

MV Pro 2.9

Pixel Pitch

1.27mm

1.56mm

1.95mm

2.23mm

2.6mm

2.9mm

LED Type

SMD1010

SMD1212

SMD1212

SMD1515

SMD1515

SMD2020

GOB

Optional

Optional

Optional

Optional

Optional

Optional

Pixel Density

614656 pixel/m²

409600 pixel/m²

262144 pixel/m²

176400 pixel/m²

147456 pixel/m²

112896 pixel/m²

Brightness

500~800 nits

600~1000 nits

600~1000 nits

800~1200 nits

800~1200 nits

800~1200 nits

Color Temperature

6500~9500k

6500~9500k

6500~9500k

6500~9500k

6500~9500k

6500~9500k

Panel Dimension

500mm*500mm*72mm(19.7"*19.7"*2.83")

Panel Resolution

392*392pixel

320*320pixel

256*256pixel

210*210pixel

192*192pixel

168*168pixel

Panel Weight

9kg(19.84lb)±10%

Cabinet Material

压铸箱体 Die-casting Cabinet

Max Power Consumption

≦850w/㎡

Ave Power Consumption

≦425w/㎡

Viewing Angle

H:160º  V:140º

Refresh Rate

1920HZ/3840HZ/7680HZ

Gray Scale

13~16bit

IP Rating

IP30

Max Stacking/Hanging

10m

Curve

-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°

Operating Temp/Humidity

-20℃~+45℃;10%~60%RH

Storage Temp/Humidity

-40℃~+60℃;10%~60%RH
