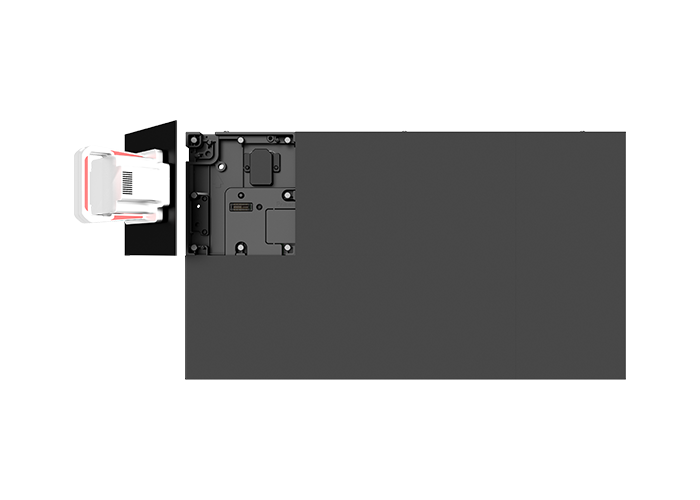

Blade Module Installation

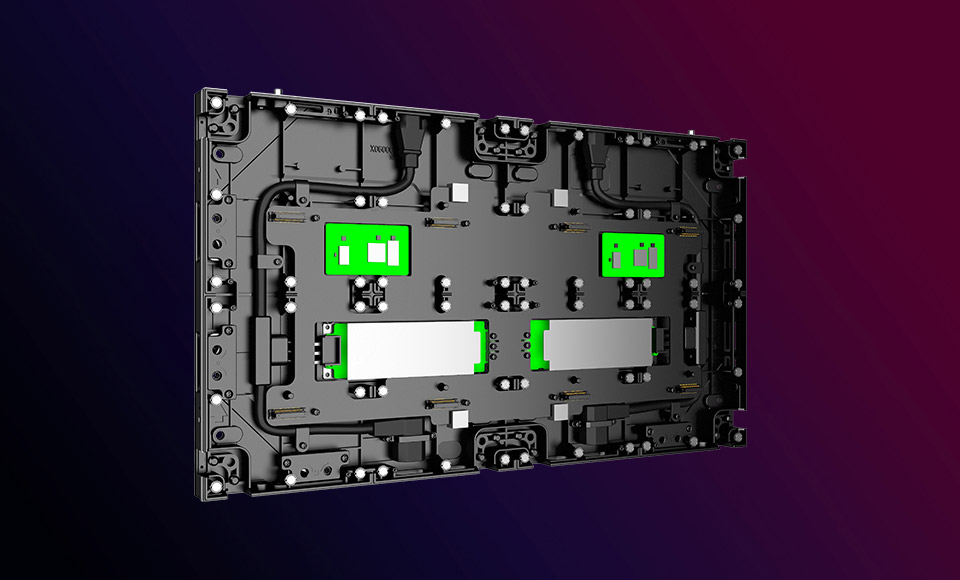

Easy Maintenance

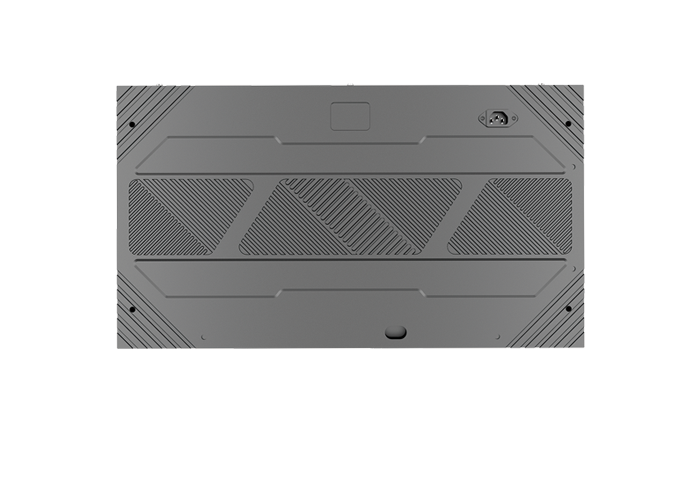

Extremely Slim & Light

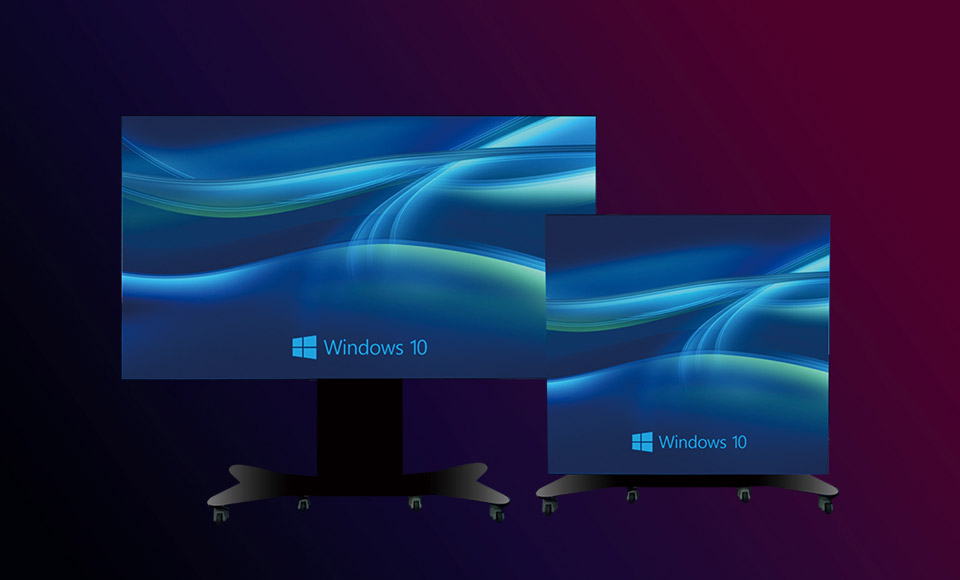

Can be paired with dedicated stands to assemble all-in-one screen and poster displays. Adaptable to various usage scenarios such as meetings, education, and retail.

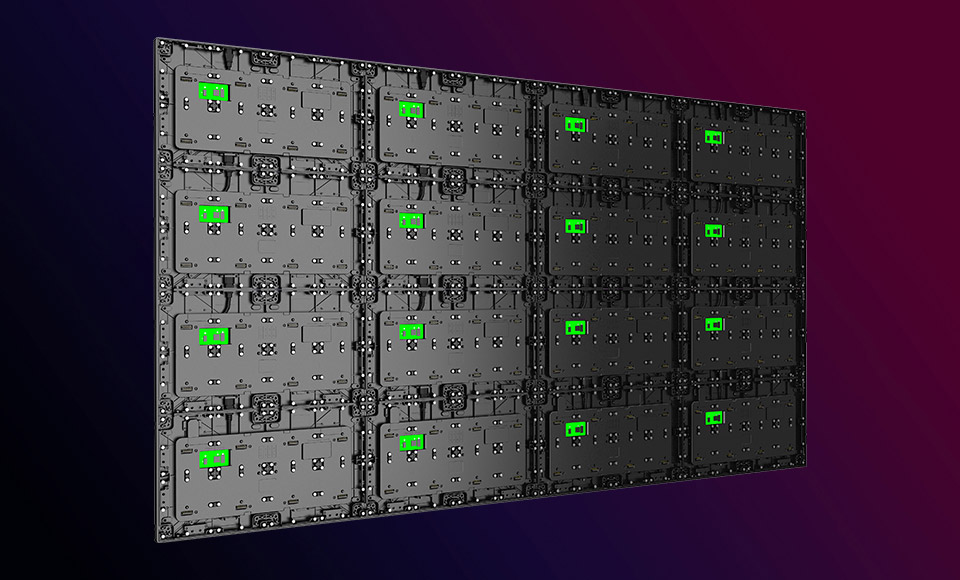

Supports dual redundancy for both power and signal, meeting the high-performance requirements of command centers, monitoring centers, studios, etc.

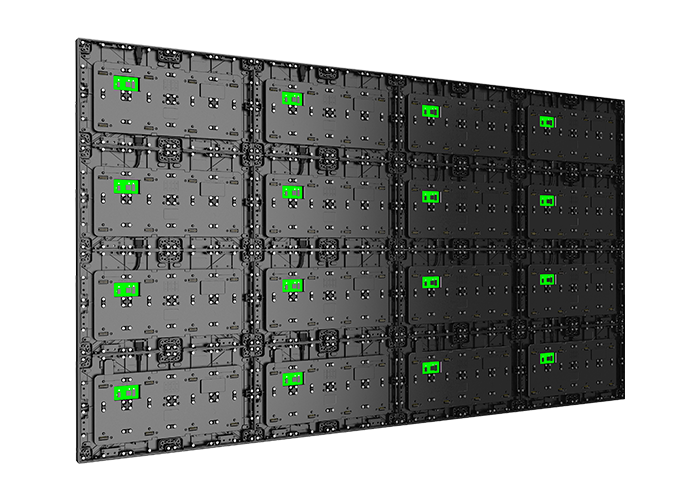

By removing the top locating pins, the panels on all four sides can be encapsulated,combining aesthetic appeal with protective function.
Refined light-emitting units effectively enhance image quality, achieving ultra-high contrast, detailed imagery and extremely pure colors, effectively reducing the moiré pattern and providing a non-reflective viewing experience.
|
Model No. |
AFⅡ0.7 |
AFⅡ0.7 |
AFⅡ0.9 |
AFⅡ0.9 |
AFⅡ1.2 |
AFⅡ1.5 |
AFⅡ1.8 |
AFⅡ1.2 |
AFⅡ1.5 |
AFⅡ1.8 |
||||
|
Pixel Pitch |
0.7 |
0.7 |
0.9 |
0.9 |
1.2 |
1.5 |
1.8 |
1.2 |
1.5 |
1.8 |
||||
|
LED Type |
COB |
MIP |
COB |
MIP |
COB |
COB |
COB |
SMD |
SMD |
SMD |
||||
|
Packaging techinque |
COB |
MIP |
COB |
MIP |
COB |
COB |
COB |
SMD |
SMD |
SMD |
||||
|
Panel Dimension |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
600mm*337.5mm*32mm |
||||
|
Panel Resolution |
768*432pixel |
768*432pixel |
640*360pixel |
640*360pixel |
480*270pixel |
384*216pixel |
320*180pixel |
480*270pixel |
384*216pixel |
320*180pixel |
||||
|
Scan Rate |
1/64 or 1/36 |
1/36 |
1/54 |
1/45 |
1/27 |
1/40 |
1/60 |
1/48 |
1/45 |
1/27 |
1/40 |
1/60 |
1/54 |
1/45 |
|
Brightness |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
1000nits |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
1000nits |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
|
Panel Weight |
5.2kg±10% |
|||||||||||||
|
Cabinet Material |
Die-casting Aluminum |
|||||||||||||
|
Viewing Angle |
H:160°/V:160° |
|||||||||||||
|
IP Rating |
MOdule: Front IP65（Panel: Front IP30） |
|||||||||||||
|
Serviceability |
Front Maintenance |
|||||||||||||
|
Curve |
Support flat screen |
|||||||||||||
|
Max Stacking/Hanging |
Support stacking installation |
|||||||||||||
