Product MT Edge Series

MT Edge Series

  • Curved

  • Easy Maintenance

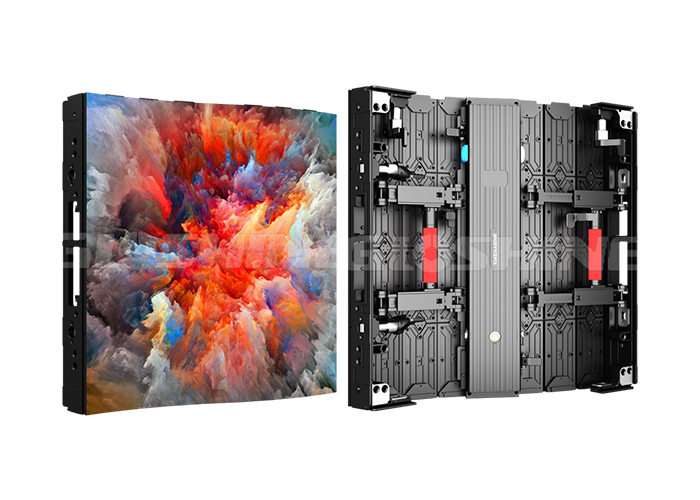

MT Edge Series Indoor HD LED Panel

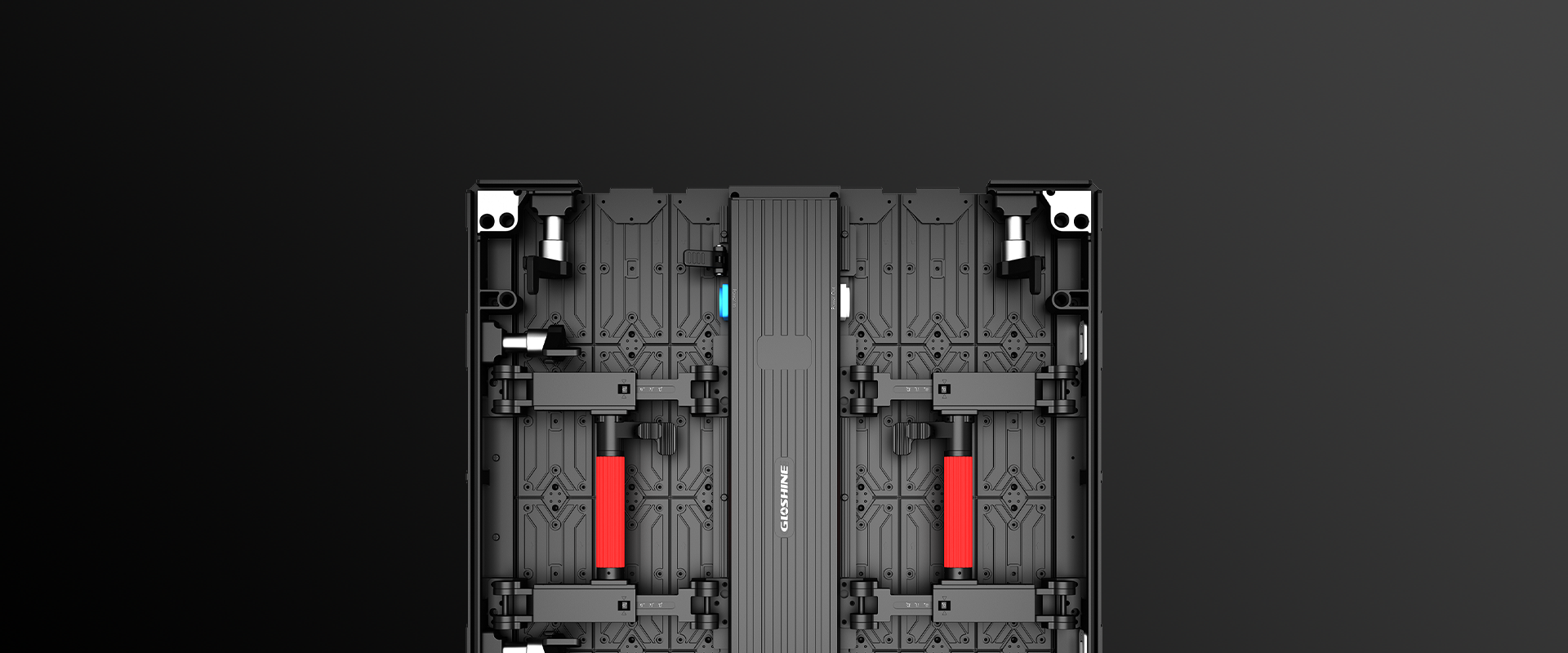

•Thin Cabinet

•Flexible Module

•Fast Installation

•Variety of Shapes


Dimension Weight

Thickness 62mm


Curved Lock

Curved angle from 0° to ±10°

Curved Lock

One cabinet

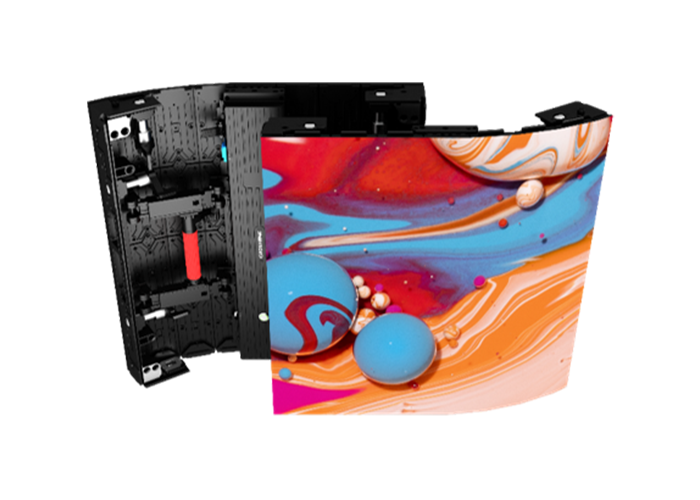

Flexible module

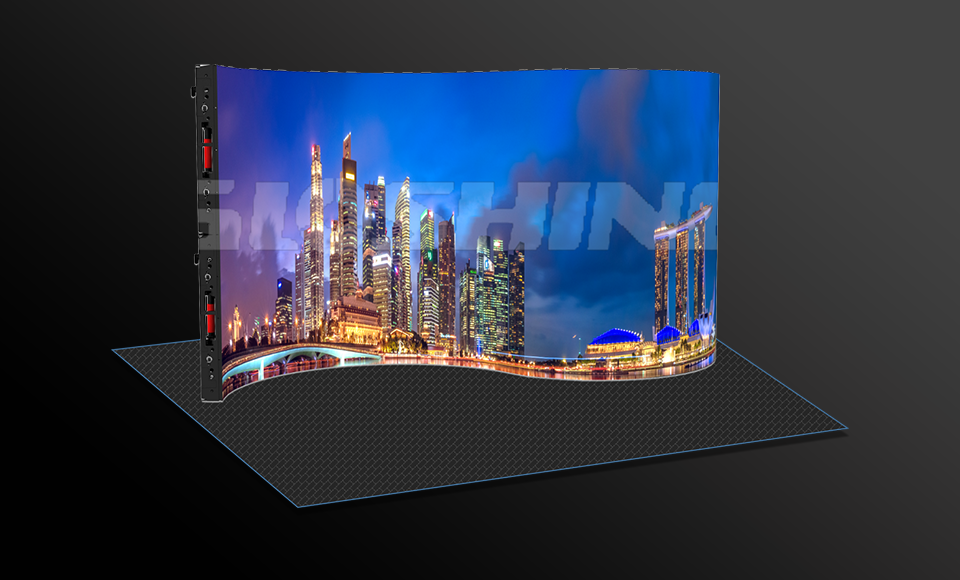

S shape

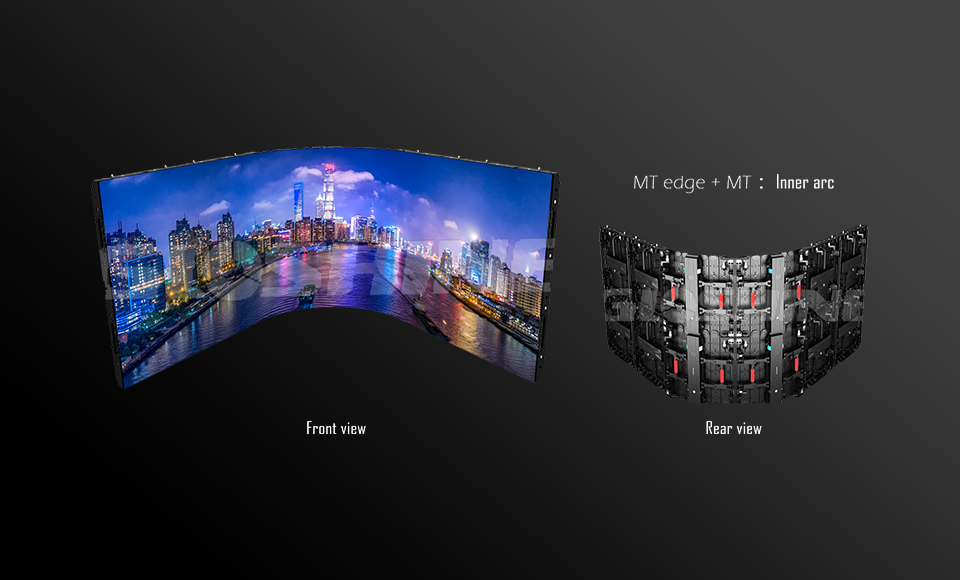

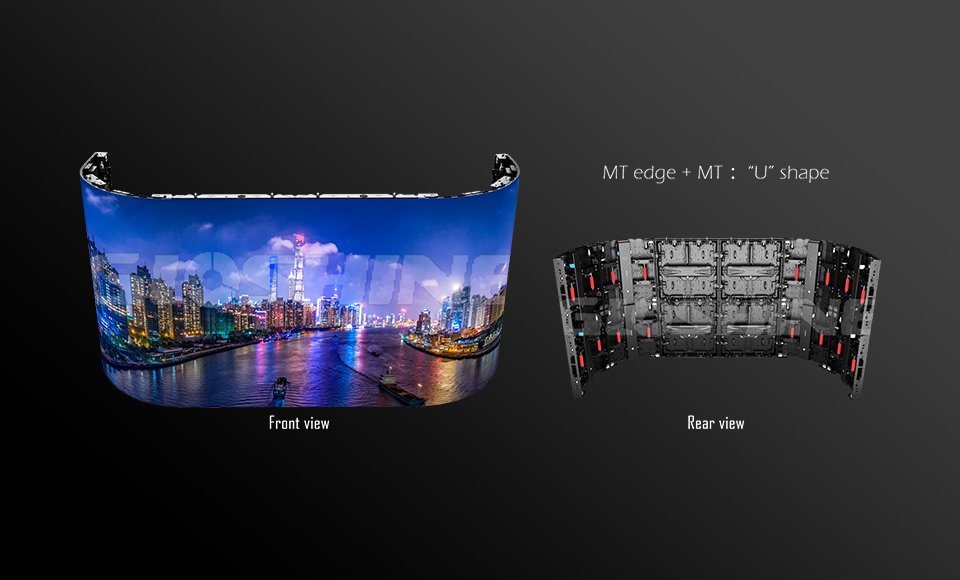

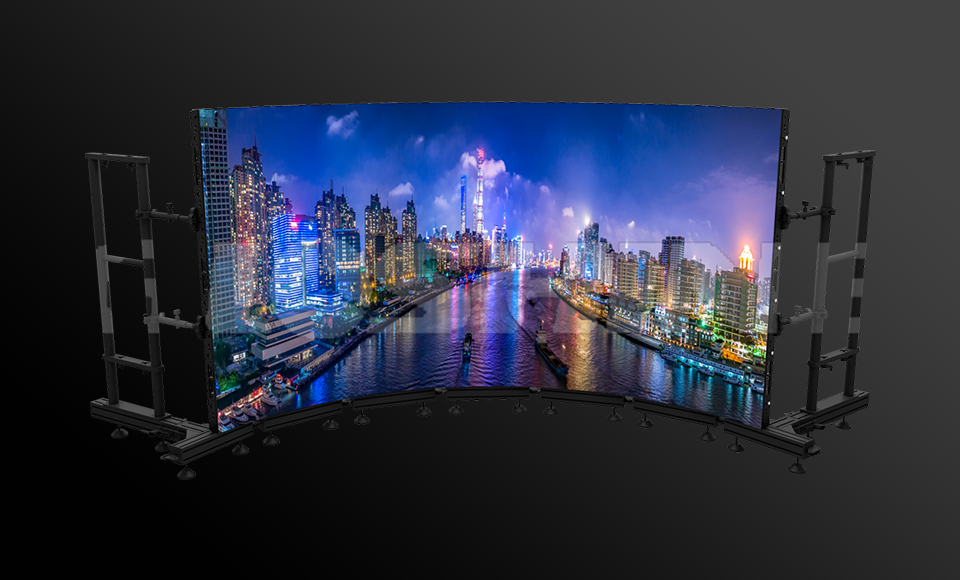

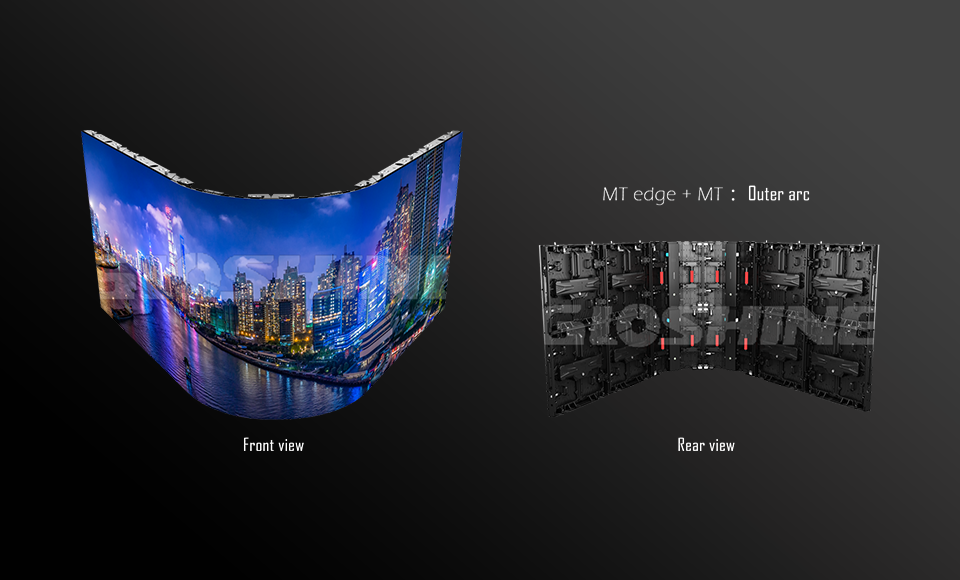

Concave and convex shape

Curved Lock

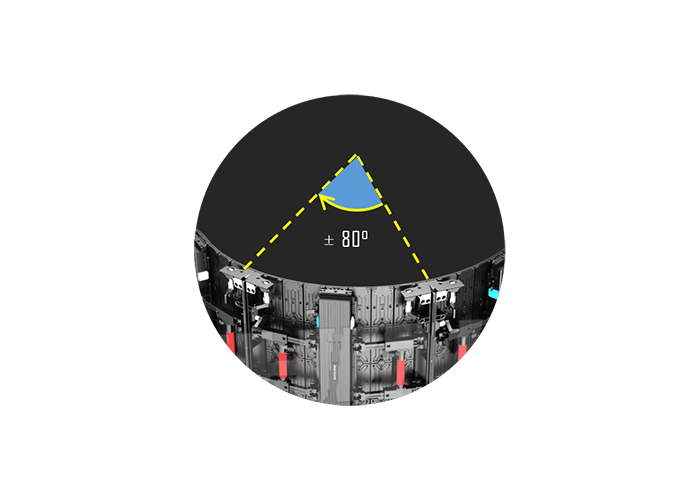

Max curved angle ±80° per panel

Curved Lock

Cylindrical Shape Can Be Achieved by merely 5 Cabinets

Technical parameter

Model No. MT Edge2.3(Indoor) MT Edge2.8(Indoor)
Pixel Pitch 2.3mm 2.8mm
LED Type SMD1515 SMD2020
Pixel Density 175858pixel/m² 125910pixel/m²
Brightness 800-1000nits 800-1000nits
Color Temperature 6500-9500K 6500-9500K
Scan  1/26  1/22
Panel Dimension(W*H*D) 496mm*496mm*62mm(19.53"*19.53"*2.44")  496mm*496mm*62mm(19.53"*19.53"*2.44")
Panel Resolution 208*104pixel 176*88pixel
Panel Weight 8KG(17.64lb)±10% 8KG(17.64lb)±10%
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Max Power Consumption ≤650W/m² ≤650W/m²
Ave Power Consumption ≤325W/m² ≤325W/m²
Viewing Angle H:160° V:140° H:160° V:140°
Refresh Rate 3840Hz 3840Hz
Gray Scale 14-16bit 14-16bit
Working Voltage(Wide Voltage) AC100-240V~  50-60Hz
Working Voltage(Narrow Voltage) AC200-240V~  50-60Hz
IP Rating IP30 IP30

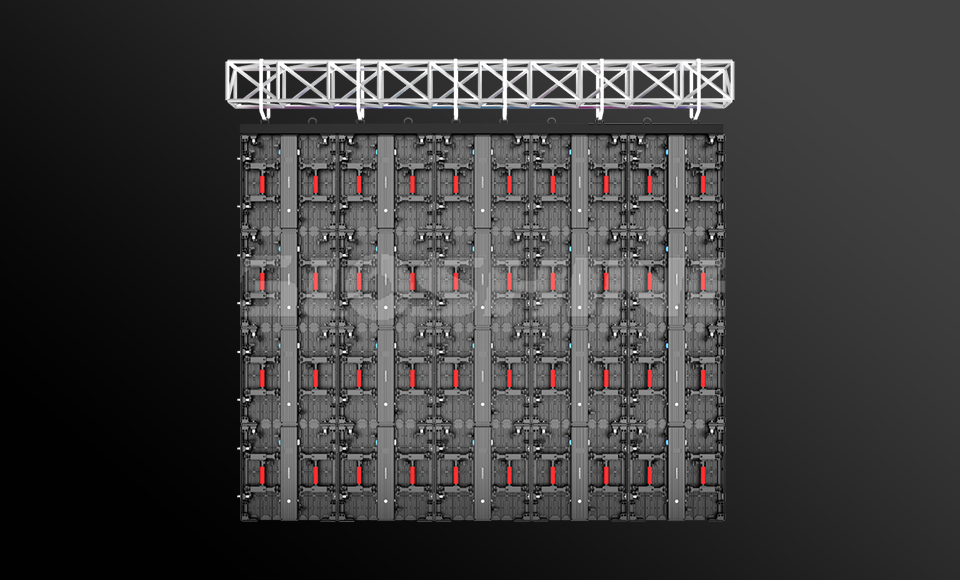

Max Stacking/Hanging 5m 5m
Curve -80°/ -70°/ -60°/ -50°/ -40°/ -30°/ -20°/ -10°/ 0°/ 10°/ 20°/ 30°/  40°/ 50°/ 60°/ 70°/ 80°
Lifetime 50000 50000
Operating Temp/Humidity   -20℃~+45℃;10%~60%RH   -20℃~+45℃;10%~60%RH
Storage Temp/Humidity   -40℃~+60℃;10%~60%RH   -40℃~+60℃;10%~60%RH
