CF PRO II Series

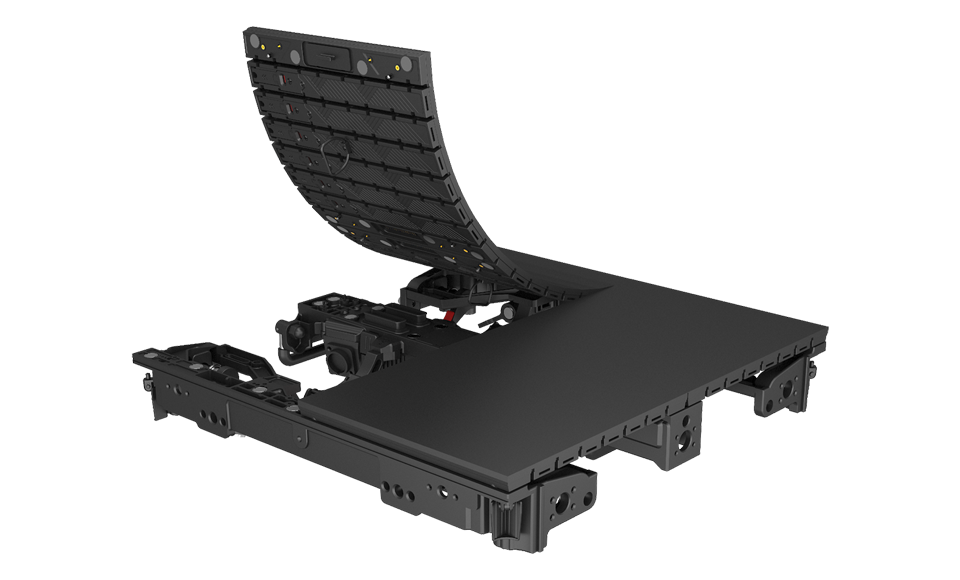

The flexible module measures 500mm × 250mm, featuring a smooth screen surface with seamless connections, and delivers excellent color and brightness uniformity.

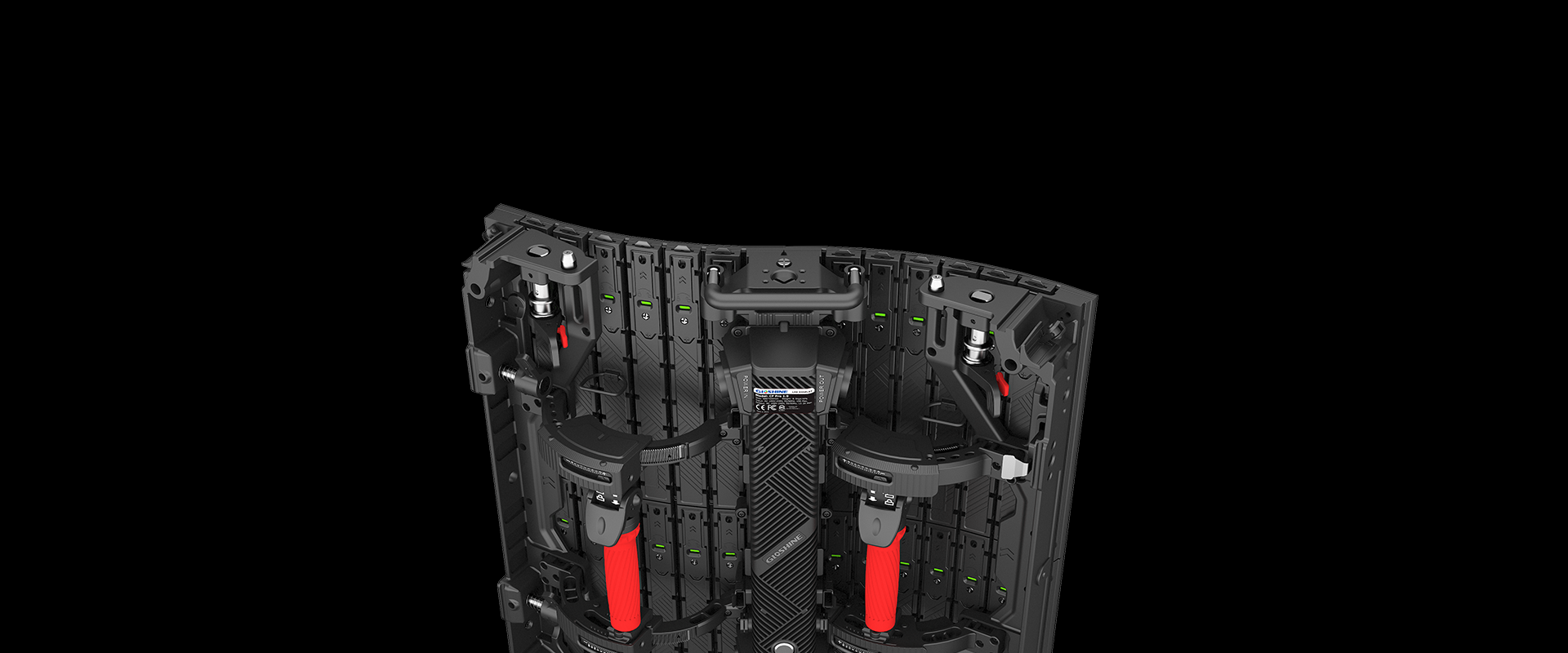

Each cabinet: 0°–±22.5° left/right;

max. curved angle: ±45°.

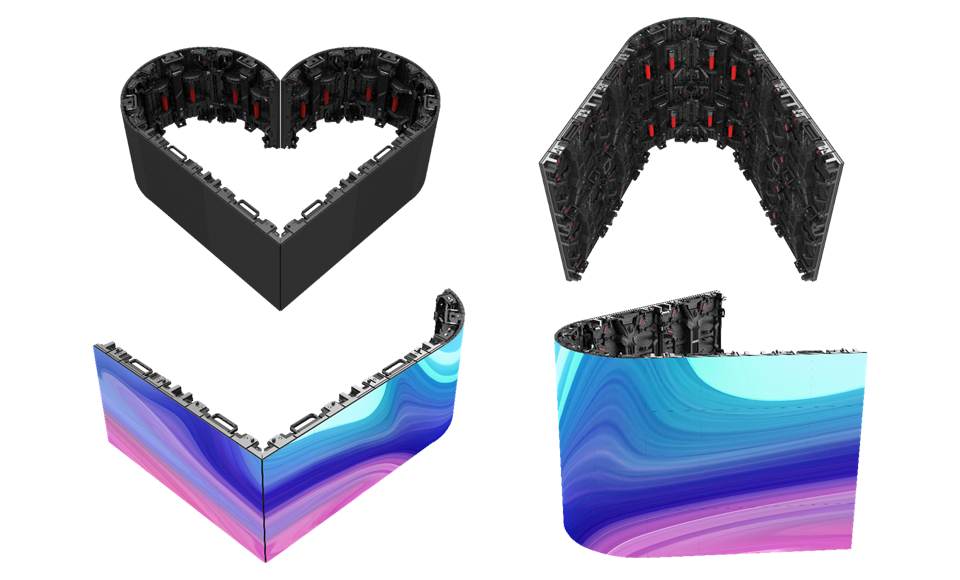

Max. angle per cabinet: +90°/-60°, enabling quick right-angle and large-angle splicing.

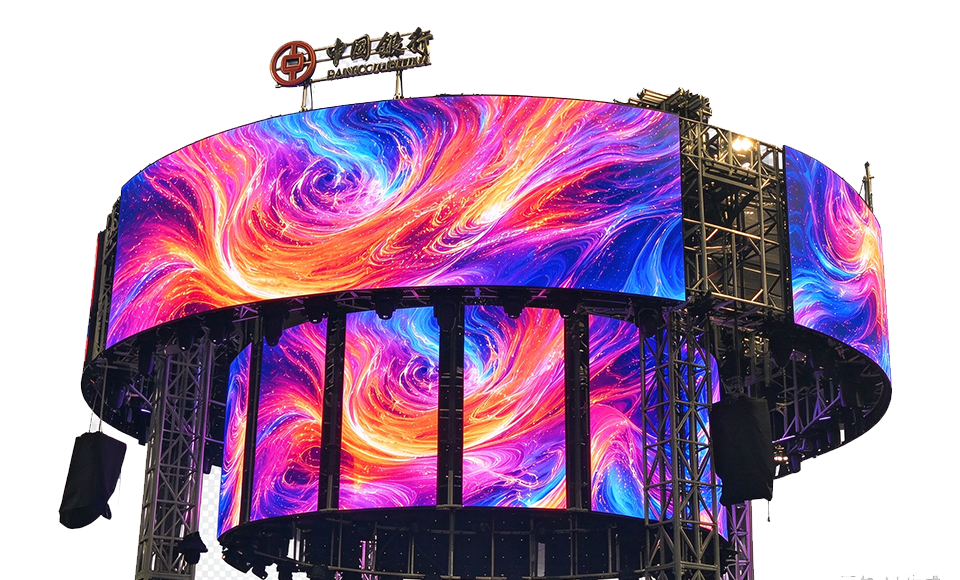

•Min. 8 cabinets (gear lock) to form a cylindrical shape; min. outer diameter: 1.273 m.

•Min. 4 cabinets (linear rail lock) to form a cylindrical shape; min. outer diameter: 0.637 m.

CF Pro Ⅱ Series supports seamless combine with indoor RB-S、DN-B、MV Pro、MV Ultra、UR Ⅱ  Series enabling versatile stage setups

Premium display components combine exceptional image quality with reliable performance. Motion stays smooth and ghost-free, color transitions look more natural, and even complex curves and creative stage designs retain complete, finely detailed visuals.

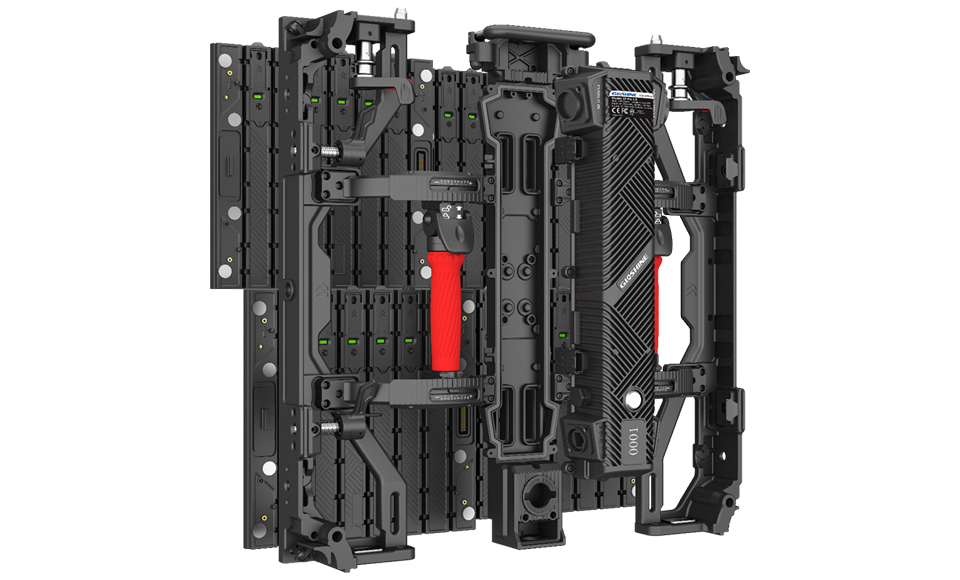

It uses a movable positioning pin with a screw-lock mechanism — simply turn the screw to extend or retract the pin. When retracted, it allows for easy module maintenance; when extended, it ensures more accurate and stable assembly.

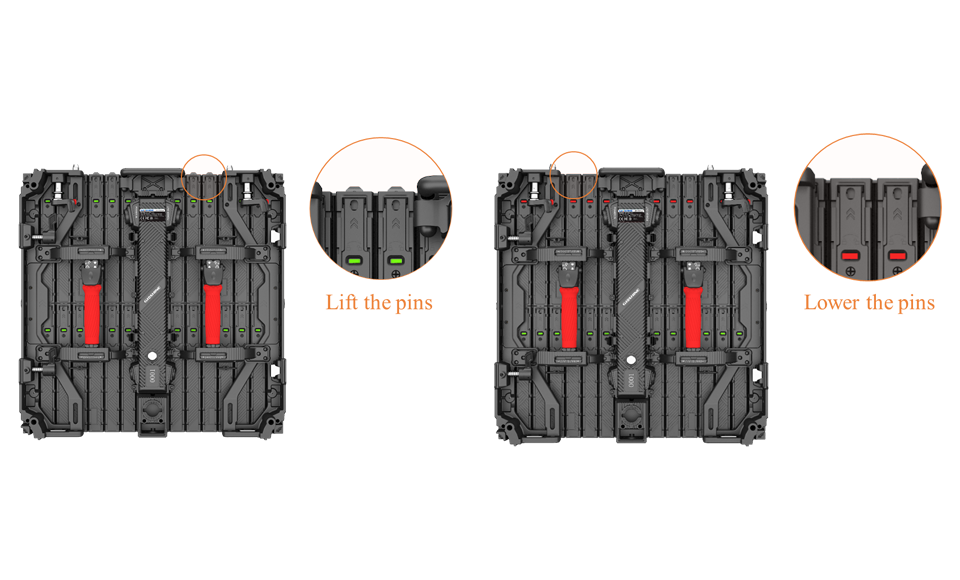

The power supply, receiving card, and HUB board are integrated into the rear cover. It features a latch design for quick and easy spare rear cover replacement, maximizing on-site efficiency and ensuring smooth event operations.
