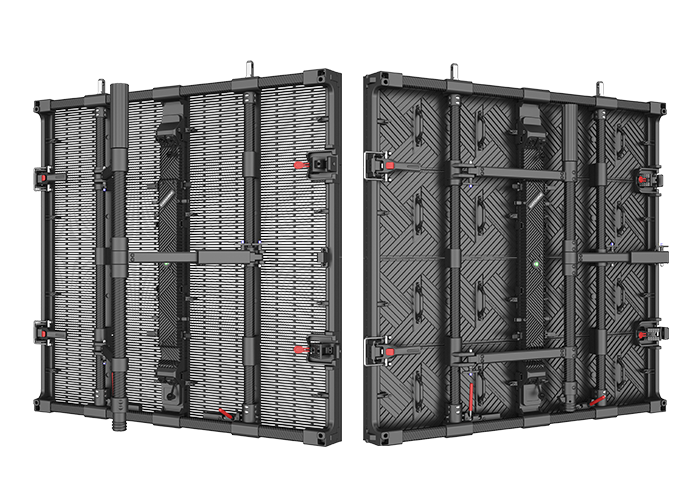

Modules are fixed by magnets and screws, allowing both front and rear maintenance.

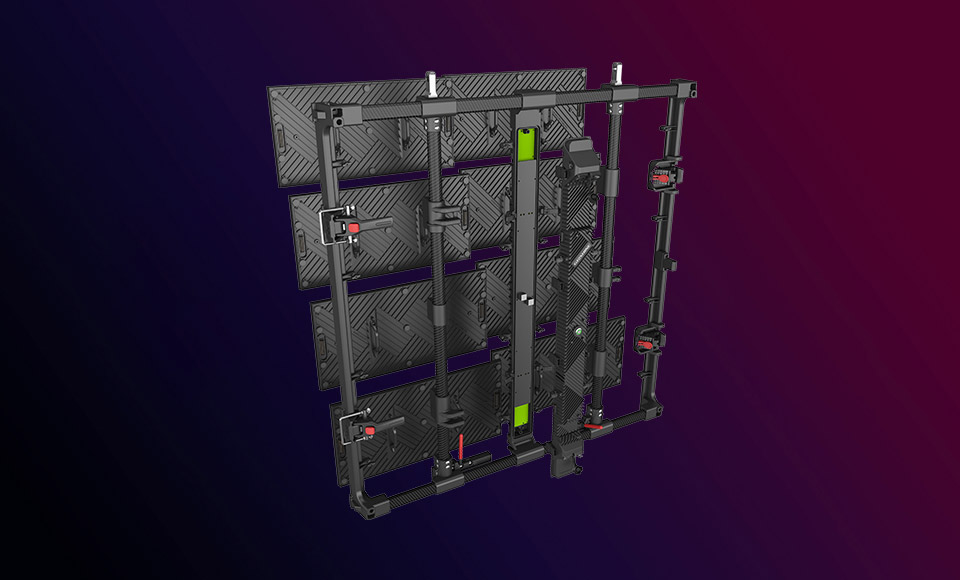

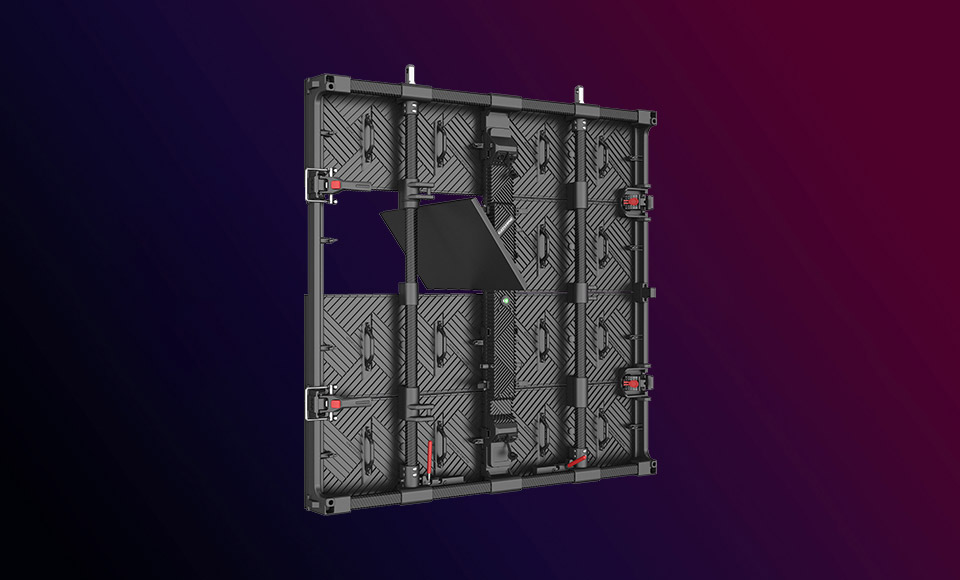

The integrated rear cover with rotary knob fixation enables tool-free assembly and removal, operable by hand, greatly improving maintenance speed.

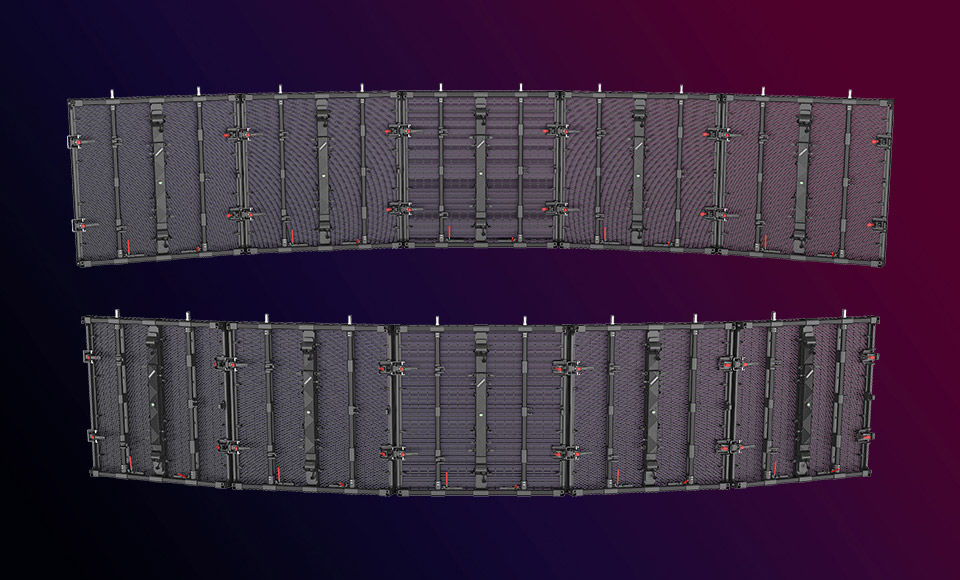

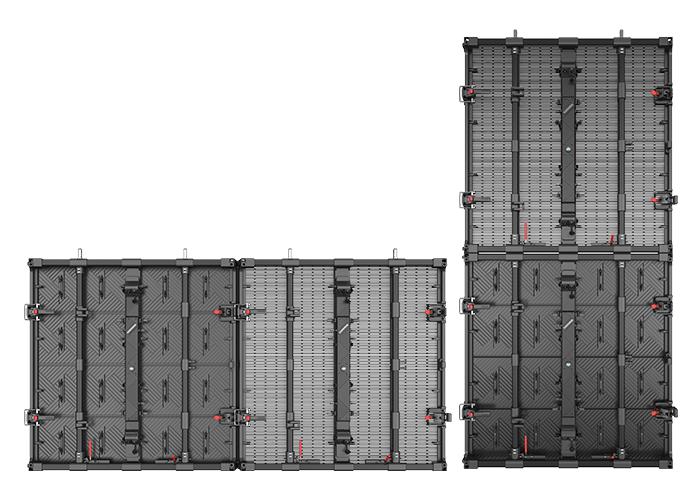

Supports curved splicing with adjustable angles: -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°.

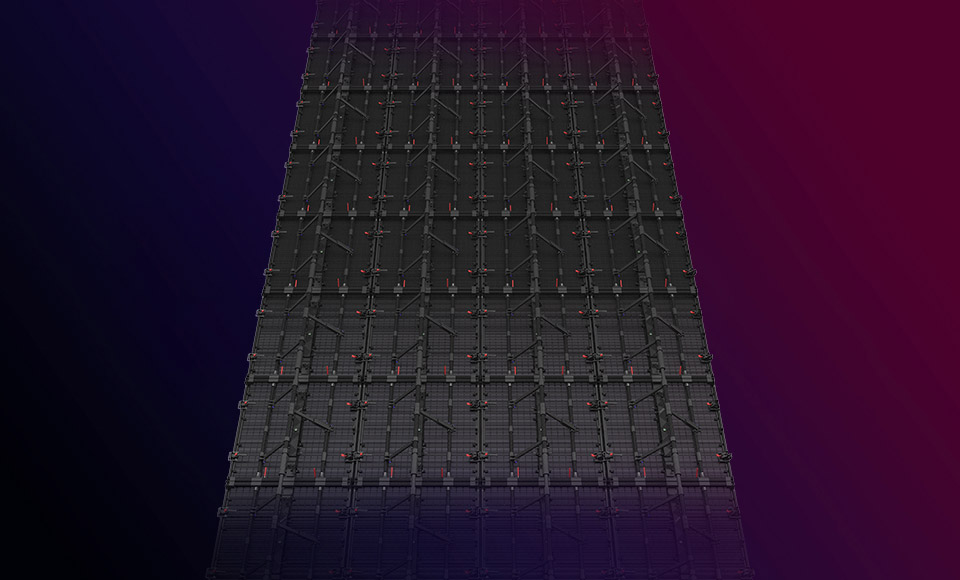

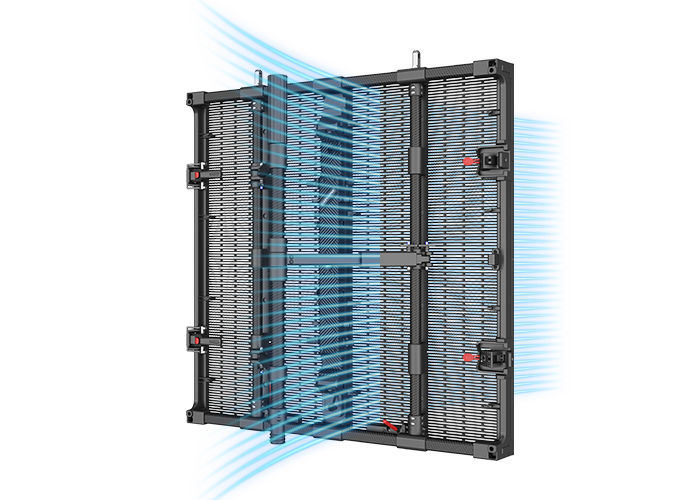

The max. stacking and hanging installation height can reach up to 10 meters, extending to 20 meters when equipped with the integrated wind-bracing system.

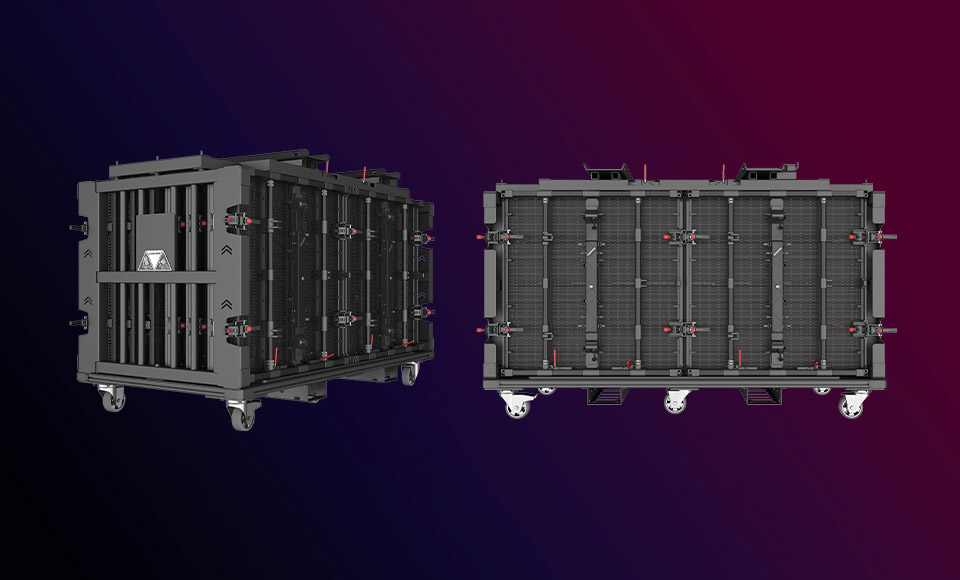

Equipped with professional transport dolly carts. Each dolly cart can carry 12 panels, and two dolly carts can be stacked for transport, significantly enhancing mobility convenience in outdoor scenarios.
|
Model No. |
CR MAX3.9-7.8 |
CR MAX5.9 |
CR MAX6.9 |
CR MAX8.9 |
|
Pixel Pitch |
3.9-7.8 |
5.9 |
6.9 |
8.9 |
|
LED Type |
SMD1921 |
SMD1921 |
SMD1921 |
SMD1921 |
|
Pixel Density |
32768/㎡ |
28224/㎡ |
20736/㎡ |
12544/㎡ |
|
Panel Dimension |
1000mm*1000mm*105mm |
1000mm*1000mm*105mm |
1000mm*1000mm*105mm |
1000mm*1000mm*105mm |
|
Panel Resolution |
256*128pixel |
168*168pixel |
144*144pixel |
112*112pixel |
|
Scan Rate |
1/16 |
1/7 |
1/6 |
1/4 |
|
Brightness |
High Brightness for Black LEDs:2500-2800nits |
General Brightness for Black LEDs:2800-3000nits |
General Brightness for Write LEDs:4000-4500nits |
General Brightness for Write LEDs:4000-4500nits |
|
Permeability |
35% |
/ |
/ |
35% |
|
Refresh Rate |
3840Hz/7680Hz |
|||
|
Gray Scale |
14-16Bit |
|||
|
Panel Weight |
With Wind-Bracing System 16.5kg±10% / Without Wind-Bracing System 19.5kg±10％ |
|||
|
Cabinet Material |
Die-Casting Aluminum+Carbon Fiber |
|||
|
Viewing Angle |
H:160°/V:140° |
|||
|
IP Rating |
Front IP65/Rear IP54 |
|||
|
Curve |
-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° |
|||
|
Max Stacking/Hanging |
Without Wind-Bracing System 10m / With Wind-Bracing System 20m |
|||
