Product LM series

LM series

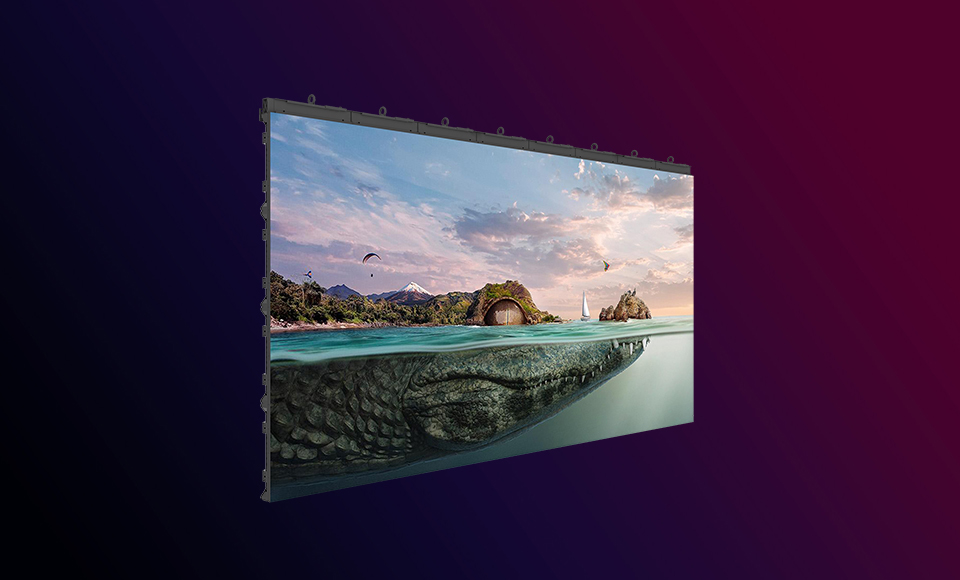

  • Outdoor / waterproof

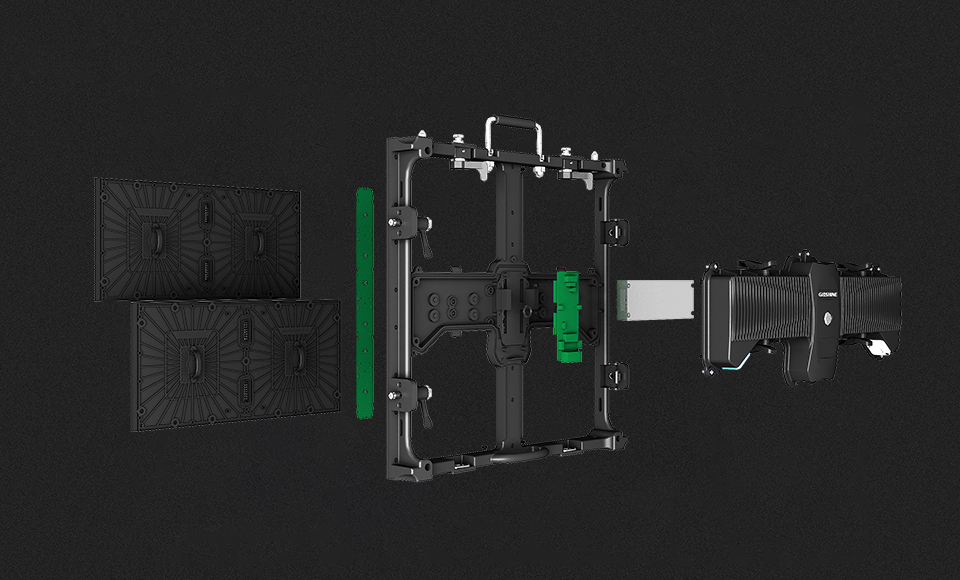

  • Fast installation

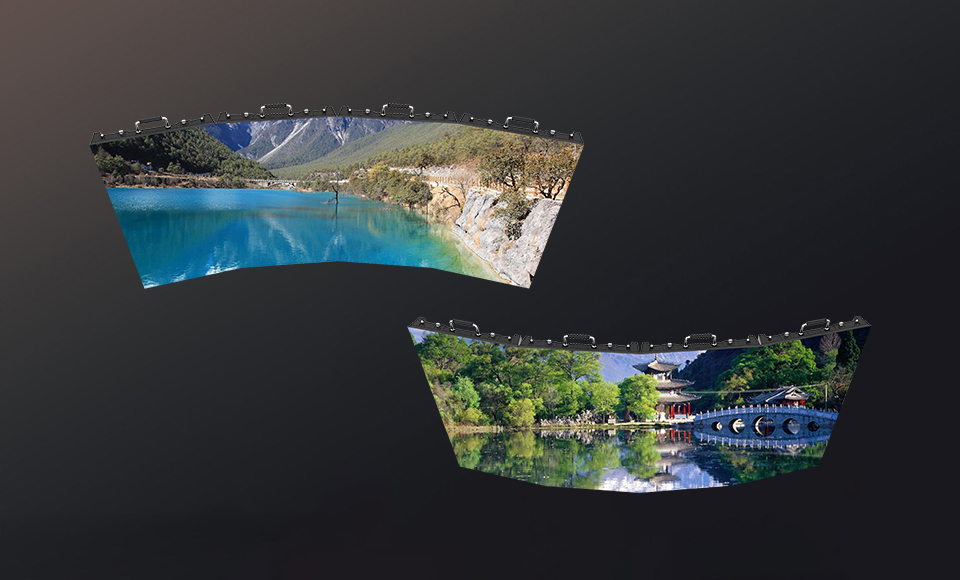

  • Curved

  • 90° stitching

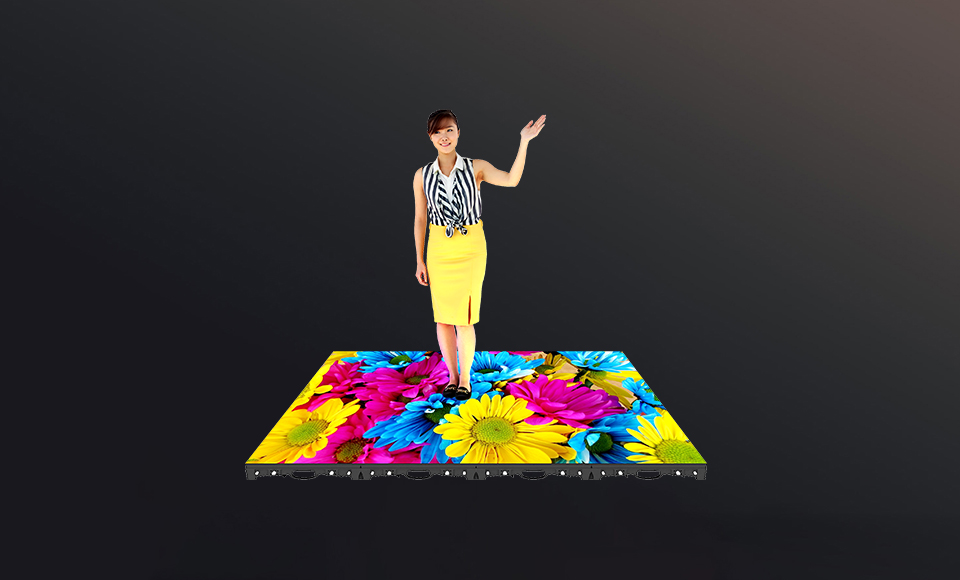

  • Dancing Floor

Classical, Reliable

Technical parameter

Model No. LM3.91(Indoor/Outdoor) LM4.81(Outdoor) LM5.95(Outdoor) LM8.33(Outdoor) LM15.62(Outdoor)
Pixel Pitch 3.91mm 4.81mm 5.95mm 8.33mm 15.62mm
LED Indoor:SMD2020
Outdoor:SMD1921
SMD1921 SMD1921 SMD2727 SMD3535
Pixel Density 65536pixel/㎡ 43264pixel/㎡ 28224pixel/㎡ 14400pixel/㎡ 4096pixel/㎡
Brightness Indoor:800-1100nits
Outdoor:2500-3500nits
                 4000-4500nits

2500-3500nits
4000-4500nits

2500-3500nits
4000-4500nits
4500-5500nits 4500-5500nits
Color Temperature     6500-9500k
Scan 1/16 1/13 1/7 1/3 Static
Panel Dimension(W*H*D)     500×500×75mm
19.7"×19.7"×3.0"

Panel Resolution 128*128pixel 104*104pixel 84*84pixel 60*60pixel 32*32pixel
Panel Weight  8.50kg/18.74lb 8.50kg/18.74lb 8.50kg/18.74lb 8.50kg/18.74lb 8.50kg/18.74lb

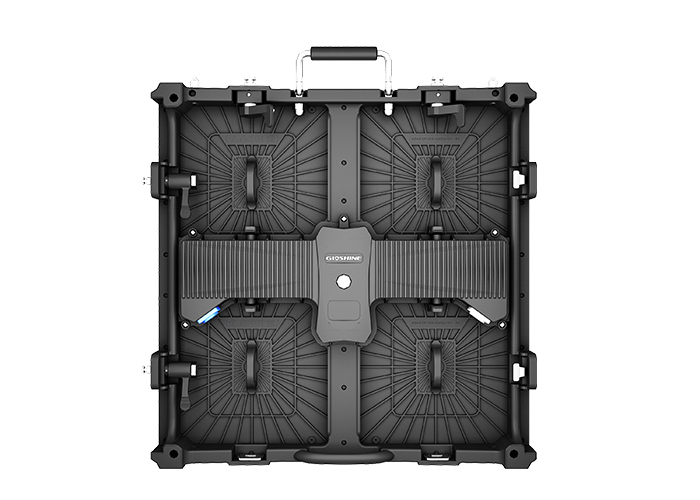

Cabinet Material     Die casting aluminum
Max Power Consumption ≤700w/㎡ ≤700w/㎡ ≤700w/㎡ ≤700w/㎡ ≤700w/㎡
Average Power Consumption ≤350w/㎡ ≤350w/㎡ ≤350w/㎡ ≤350w/㎡ ≤350w/㎡
Viewing Angle Indoor:H:160º  V:140º
Outdoor:H:140º  V:120º
H:140º  V:120º H:140º  V:120º H:140º  V:120º H:140º  V:120º
Refresh Rate     1920Hz/3840Hz
Gray Scale     14-16bit
IP Rating Indoor:IP30
Outdoor:Front IP65,Rear IP54
Front IP65,Rear IP54 Front IP65,Rear IP54 Front IP65,Rear IP54 Front IP65,Rear IP54
Operating Humidity Indoor:10%-60%RH
Outdoor:10%-90%RH
10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH
Operating Temperature     -20℃~+45℃
Max. Stacking     20pcs
Max. Hanging     20pcs
Curve(Optional)      -7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°
Lifetime     50,000 hrs
Storage Temp/Humidity     -40℃~+60℃;10%-60%RH
