New Outdoor Application Scenarios

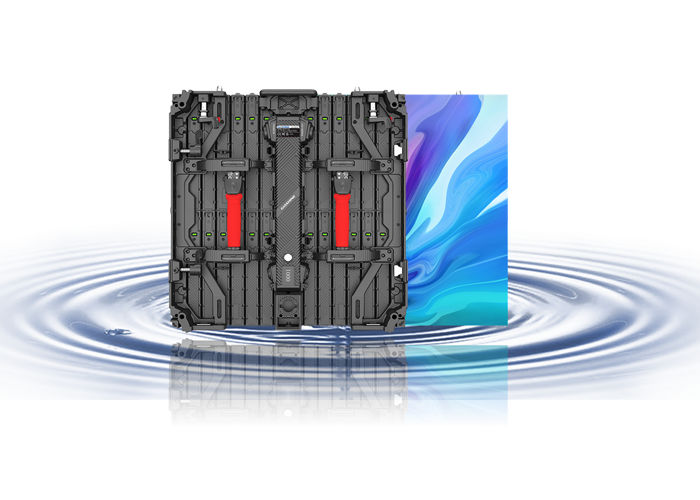

CF Pro II Series outdoor rated front IP65 and rear IP54, ensuring rain and fog resistance, making it fully resilient against adverse weather conditions.
Indoor & Outdoor Flexible LED Display

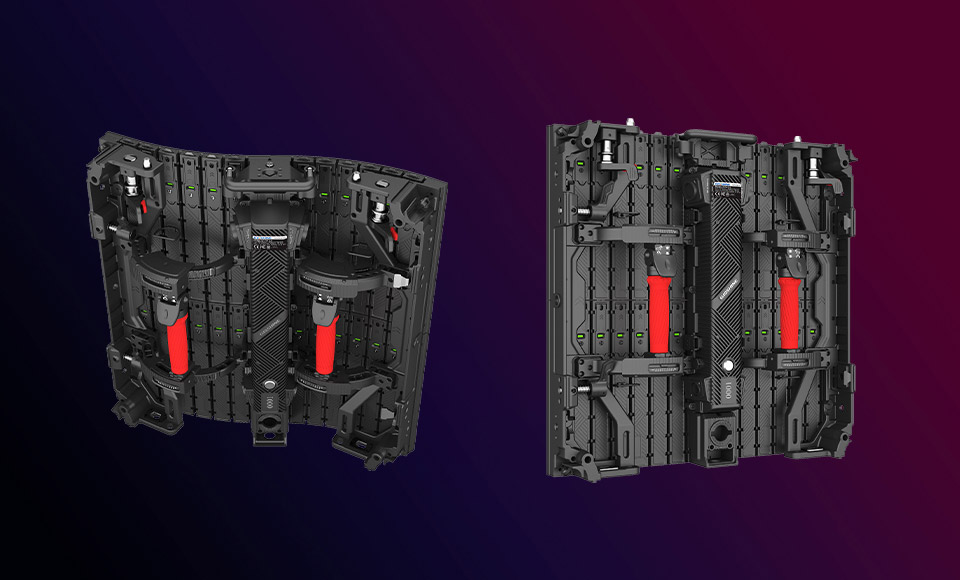

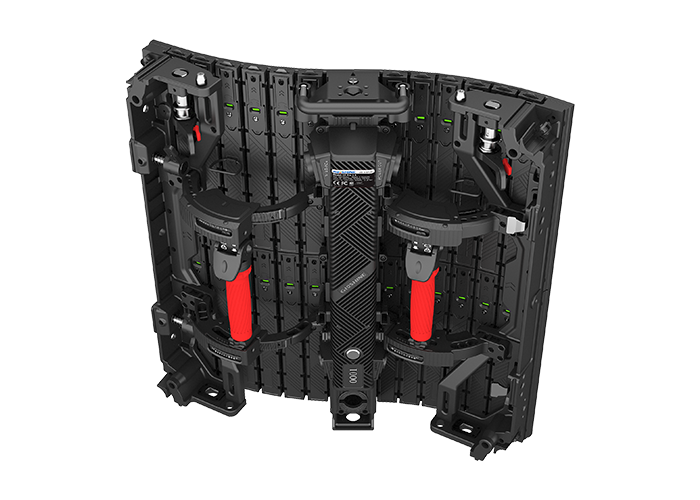

Single Panel Max. Curved ±45°/90°(Optional)

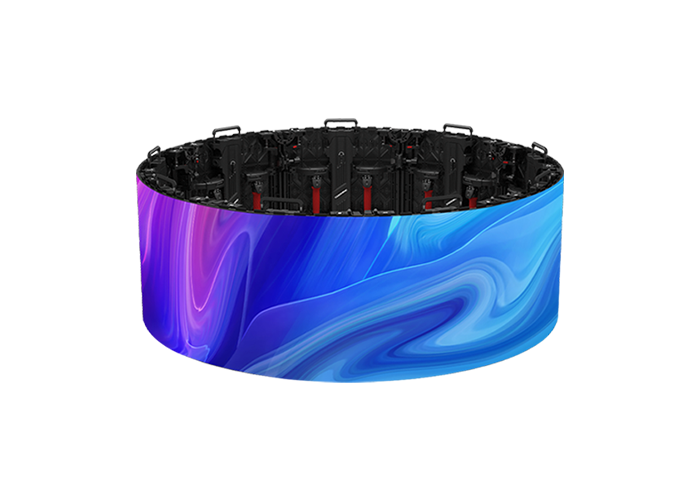

Cylindrical Shape
45° Cabinet: Cylindrical shape can be achieved by merely 8 cabinets, minimum outside diameter is 1.273m

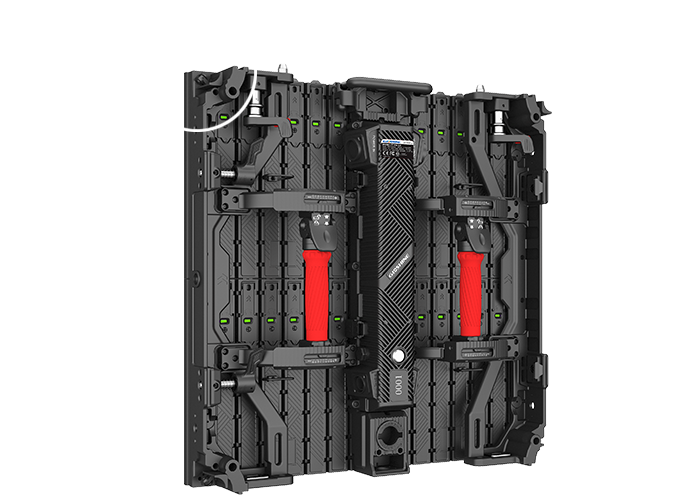

Anti-collision Corners
•Cabinet corners are reserved for protection corner installation.
•The optional protection corner can protect corner LEDs from damage due to collisions.

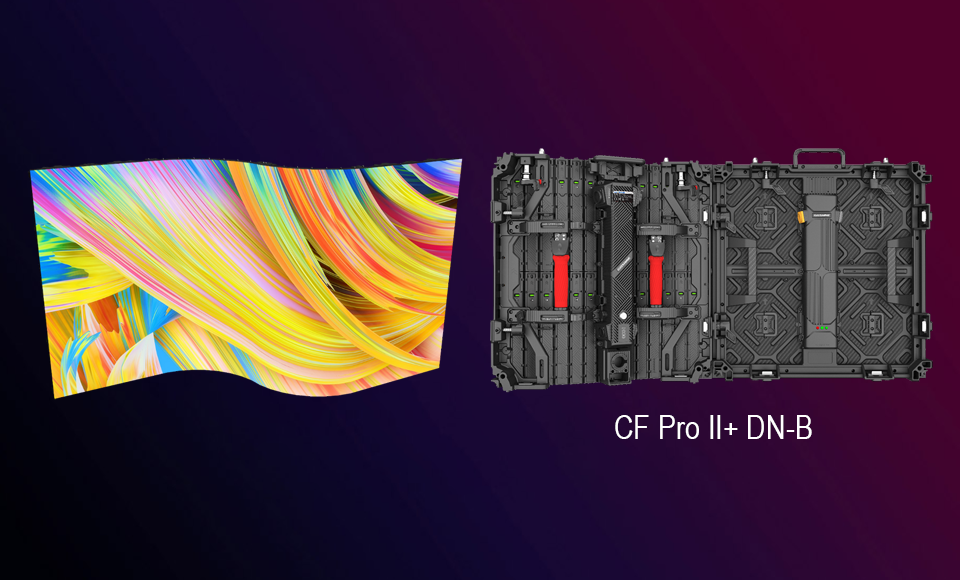

CF Pro Ⅱ Series supports seamless combine with indoor DN、DN-B、MV Pro、MV Ultra、CB-S、CB-S Ⅱ Series enabling versatile stage setups.

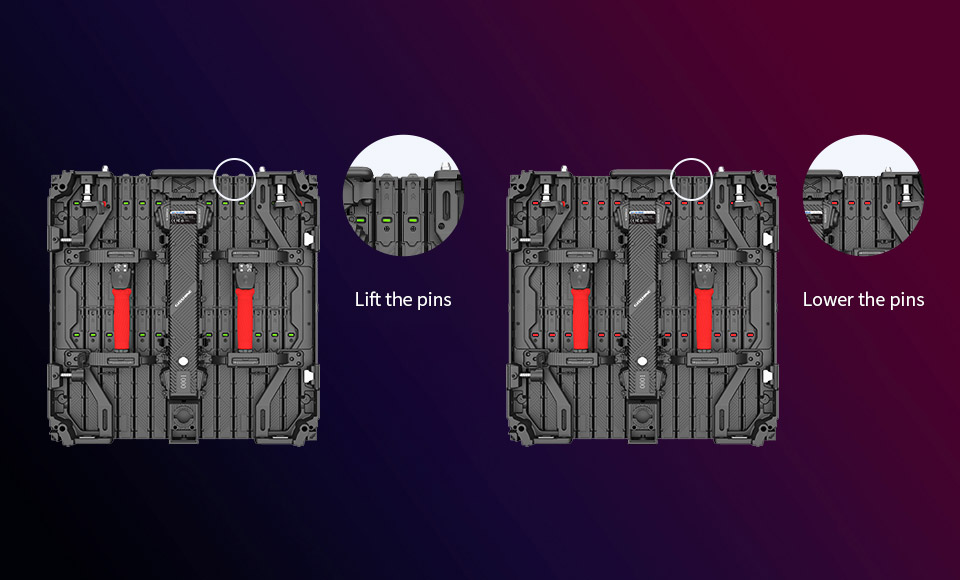

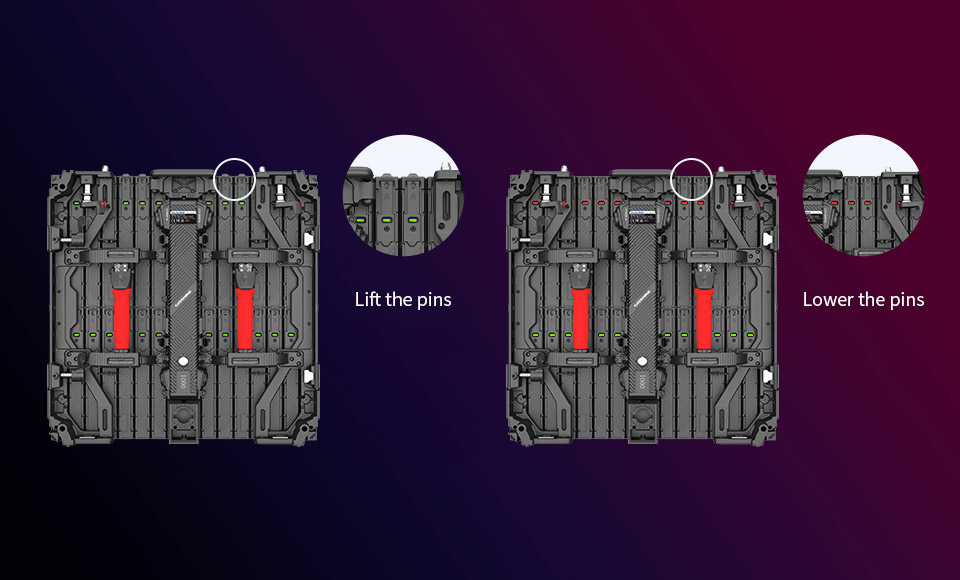

Utilizing a patented moving mechanism, the module positioning pins allow for precise on-demand adjustment, resulting in a clean and aesthetic appearance for shooting effects, and allowing for operation by a single person. The dual flexible module design minimizes gaps, ensures smooth connections, and delivers excellent color and brightness uniformity.

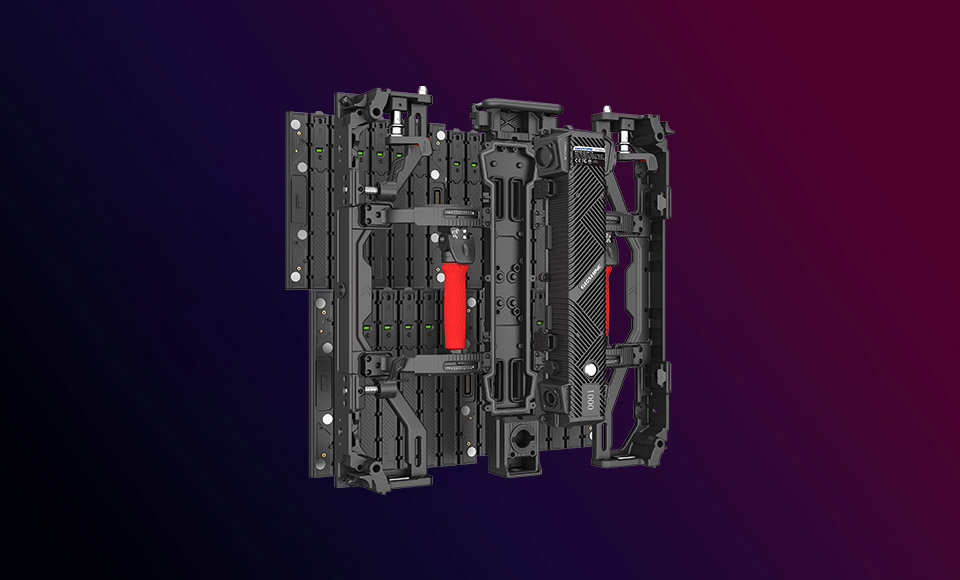

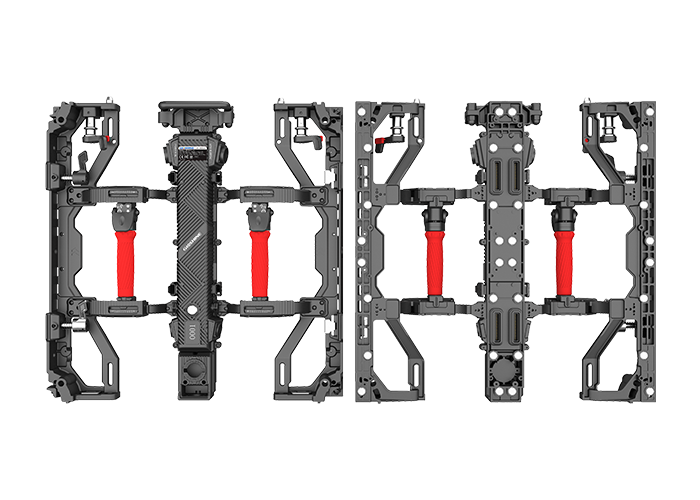

Power supply, receiving card, and HUB board all in one power box for easy and efficient maintenance.
•With H:160°, V:140° viewing angle, the picture is complete with no shadows.
•Ultra HD, Vivid Colors, Detailed Reproduction
|
Application Scenario |
Indoor |
Outdoor |
||||||
|
Model No. |
CF ProⅡ1.5 |
CF ProⅡ1.9 |
CF ProⅡ1.9 |
CF ProⅡ2.6 |
CF ProⅡ2.9 |
CF ProⅡ3.9 |
CF ProⅡ2.9 |
CF ProⅡ3.9 |
|
Pixel Pitch |
1.5 |
1.9 |
1.9 |
2.6 |
2.9 |
3.9 |
2.9 |
3.9 |
|
LED Type |
SMD1212 |
2in1 Black LED |
SMD1515 Black LED |
S-SMT1515 Black LED |
SMD2020 Black LED |
SMD2020 Black LED |
SMD1415 Write/Black LED |
SMD1921 Write/Black LED |
|
Packaging techinque |
HOB |
IMD |
HOB |
SMD |
SMD |
SMD |
SMD |
SMD |
|
Panel Dimension |
500mm*500mm*111mm |
500mm*500mm*111mm |
500mm*500mm*111mm |
500mm*500mm*111mm |
500mm*500mm*111mm |
500mm*500mm*111mm |
500mm*500mm*111mm |
500mm*500mm*111mm |
|
Scan Rate |
1/32 |
1/32 or 1/16 |
1/32 or 1/16 |
1/24 |
1/21 |
1/16 |
1/21 |
1/16 |
|
Refresh Rate |
3840Hz/7680Hz |
|||||||
|
Panel Weight |
8.5kg±10% |
8.8kg±10% |
||||||
|
Cabinet Material |
Die-Casting Aluminum |
|||||||
|
Curve |
-22.5°/-20°/-17.5°/-15°/-12.5°/-10°/-7.5°/-5/-2.5°/0°/+2.5°/+5°/+7.5°/+10°/+12.5°/+15°+/20°+/22.5° |
|||||||
|
Max Stacking/Hanging |
5m |
|||||||
