iF Design Award & THE RED DOTS AWARD Winner

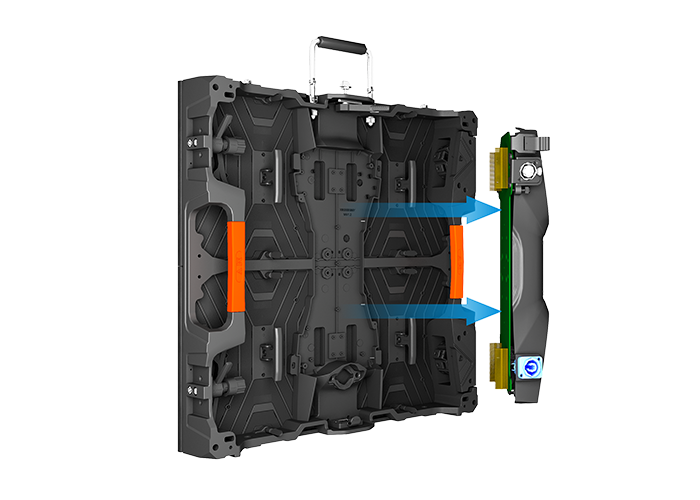

The upgrated all-in-one power box and exchangeable LED module save time for maintenance before show.
The rotatable side locks make the arc connection more precision for fine pixel pitch than the traditional Arc locks. 1.5 degrees per scale, maximum ±6 degrees for convex and concave screens.
Max. 20pcs led tiles with MV series hanging beam.(one person job for hanging up.)
Max. height 20pcs led tile with MV series stacking frame.
| Model No. | MV 2.38(Indoor) | MV 2.6(Indoor) | MV 2.97(Indoor) | MV 3.91(Indoor) |
| Pixel Pitch | 2.38mm | 2.6mm | 2.97mm | 3.91mm |
| LED | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density | 176400pixel/㎡ | 147456pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ |
| Brightness | 1000-1300nits | |||
| Color Temperature | 6500-9500k | |||
| Scan | 1/15 | 1/16 | 1/21 | 1/16 |
| Panel Dimension(W*H*D) | 500mm×500mm×78mm /19.7"×19.7"×3.1" | |||
| Panel Resolution | 210×210pixel | 192×192pixel | 168×168pixel | 128×128pixel |
| Panel Weight | 8.30kg/18.30lb | |||
| Cabinet Material | Die casting aluminum | |||
| Max Power Consumption | ≤650w/㎡ | |||
| Average Power Consumption | ≤325w/㎡ | |||
| Viewing Angle | H:160º V:140º | |||
| Refresh Rate | 3840Hz | |||
| Gray Scale | 14-16bit | |||
| IP Rating | IP30 | |||
| Operating Humidity | 10%-60%RH | |||
| Operating Temperature | -20℃～+45℃ | |||
| Max. Stacking | 20pcs | |||
| Max. Hanging | 20pcs | |||
| Curve(Optional) | -6°/-4.5°/-3°/-1.5°/0°/1.5°/3°/4.5°/6° | |||
| Lifetime | 50,000hrs | |||
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH |
