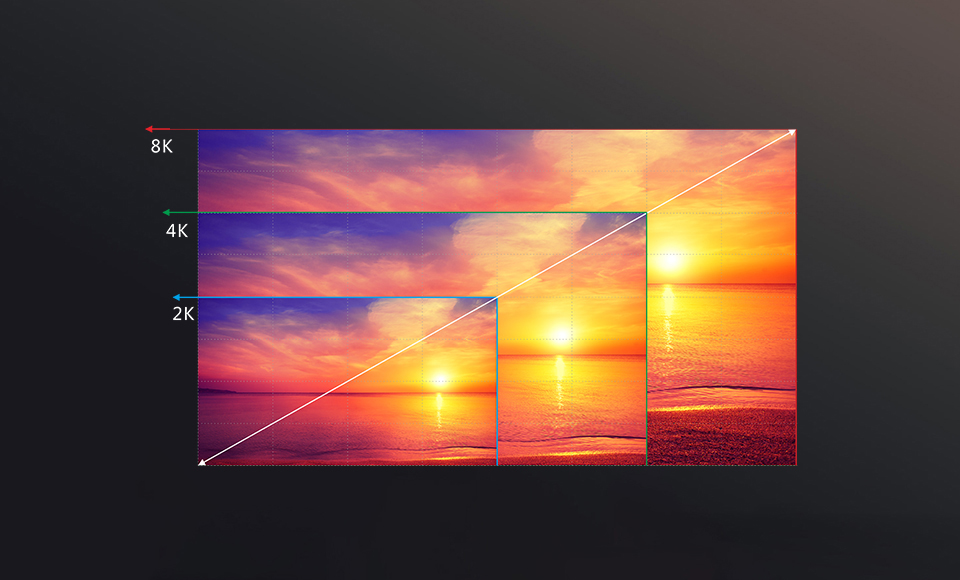

Panel size ratio 16:9, perfect for 1080P, 4K, 8K display solution.
According to the actual needs, select backup control card, data cable, power cord and power supply to improve product stability
BR series supports full maintenance (including die, power, cable and card), reduces screen thickness and improves space utilization.
BR series support front access.

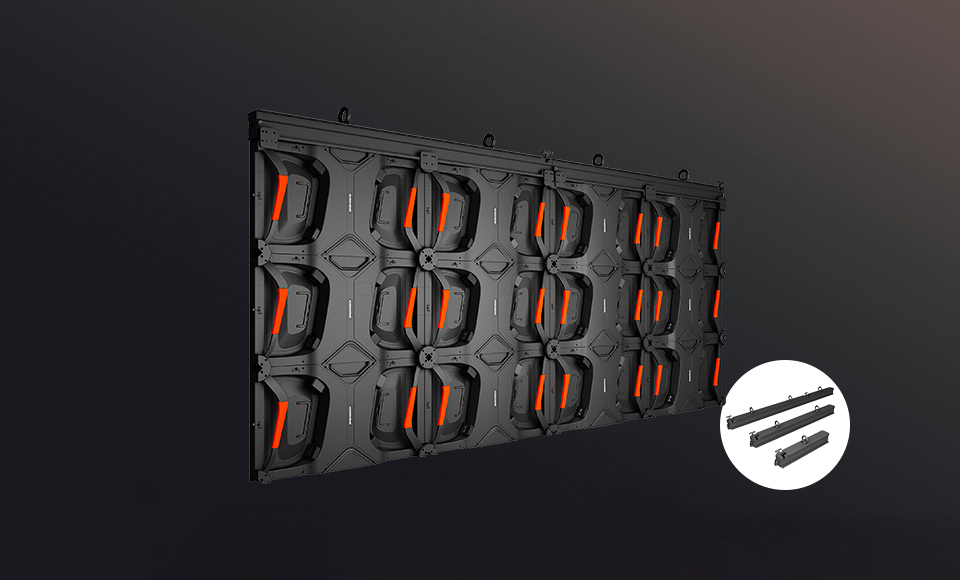

The professiional hanging beam supports hanging installation 10pcs panel maximum in height.
Model No. | BR0.93(Indoor) | BR1.25(Indoor) | BR1.56(Indoor) | BR1.87(Indoor) | BR2.5(Indoor) |
Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
LED | SMD Four in one | SMD Two in one | SMD1010 | SMD1010 | SMD1515 |
Pixel Density | 1137778pixel/㎡ | 640000pixel/㎡ | 409600pixel/㎡ | 284444pixel/㎡ | 160000pixel/㎡ |
Brightness | 500--600nits | 500--700nits | 600--800nits | 600--800nits | 800--1000nits |
Color Temperature | 3200-9600k | ||||
Panel Dimension(W*H*D) | 600×338×60mm / 23.62"×13.29"×2.36" | ||||
Panel Resolution | 640*360 pixel | 480*270 pixel | 384*216 pixel | 320*180pixel | 240*135pixel |
Panel Weight | 7kg~8kg/15.43lb~17.64lb | ||||
Cabinet Material | Die casting aluminum | ||||
Max Power Consumption | ≤700w/㎡ | ≤750w/㎡ | ≤780w/㎡ | ≤780w/㎡ | ≤680w/㎡ |
Average Power Consumption | ≤350w/㎡ | ≤375w/㎡ | ≤390w/㎡ | ≤390w/㎡ | ≤340w/㎡ |
Viewing Angle | H:160º V:140º | ||||
Refresh Rate | 3840Hz | ||||
Gray Scale | 13-15bit | 13-15bit | 14-16bit | 13-15bit | 14-16bit |
IP Rating | IP30 | ||||
Operating Humidity | 10%-60%RH | ||||
Operating Temperature | -20℃~+40℃ | ||||
Max. Stacking | 20pcs | ||||
Max. Hanging | 15pcs | ||||
Qty of on 1080P | 3×3 | 4×4 | 5×5 | 6×6 | 8×8 |
Lifetime | 50,000hrs | ||||
Storage Temp/Humidity | -40℃~+60℃;10%-60%RH |
