Product ASⅡ&AMⅡ Series

ASⅡ&AMⅡ Series

  • Outdoor / waterproof

  • Fast installation

  • Easy Maintenance

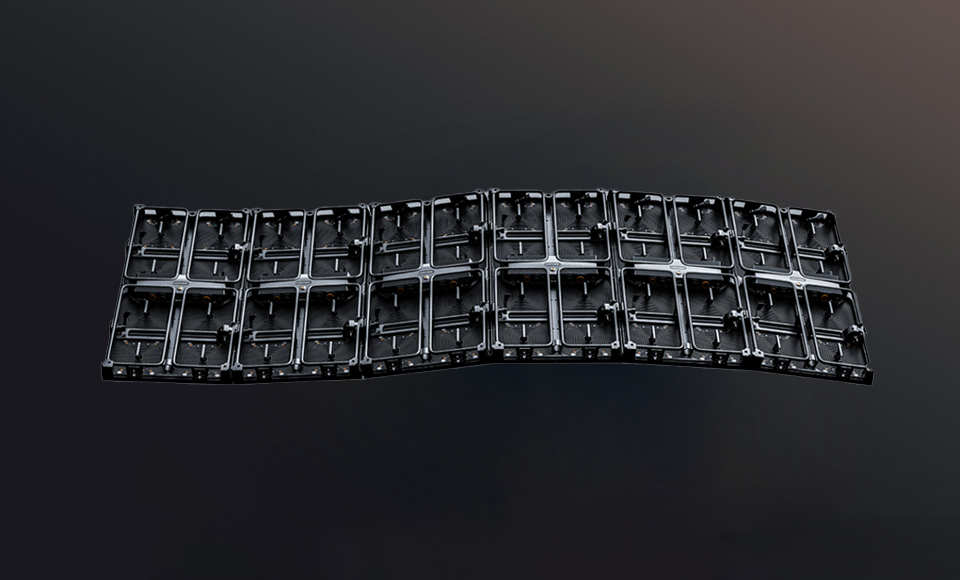

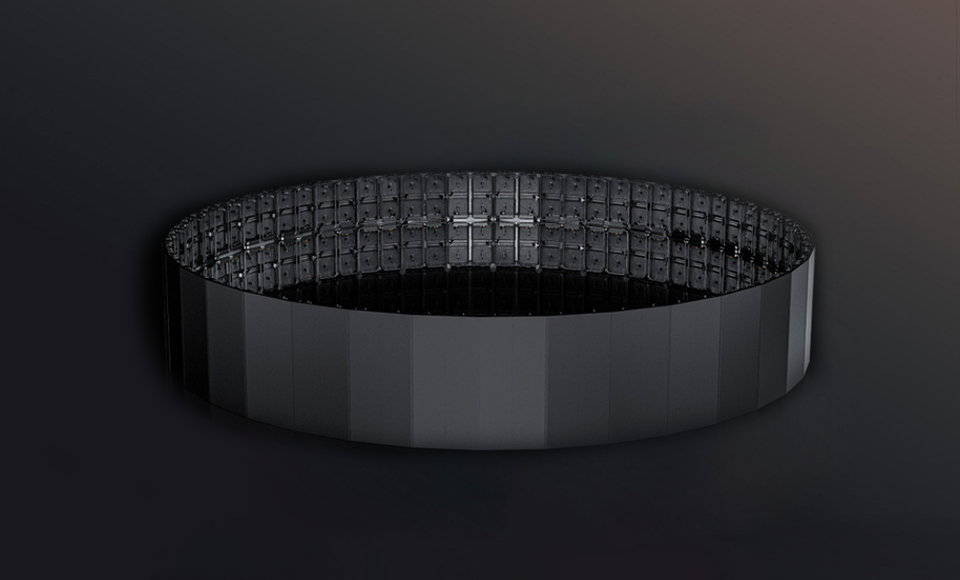

  • Curved

  • Dancing Floor

Classical, Reliable

Technical parameter

Model No. ASⅡ3.91(Outdoor) ASⅡ4.81(Outdoor) AMⅡ3.91(Outdoor) AMⅡ4.81(Outdoor)
Pixel Pitch 3.91mm 4.81mm 3.91mm 4.81mm
LED SMD1921 SMD1921
Pixel Density 65536pixel/㎡ 43264pixel/㎡ 65536pixel/㎡ 43264pixel/㎡
Brightness 3000-5000nit 3000-5000nit
Color Temperature 6500-9500k 6500-9500k
Panel Dimension(W*H*D) 1000mm×500mm×80mm 500mm×500mm×80mm
Panel Resolution 128*256pixel 104*208pixel 128*256pixel 104*208pixel
Panel Weight  12.50kg/27.56lb 12.50kg/27.56lb 12.50kg/27.56lb 12.50kg/27.56lb
Cabinet Material 12kg 12kg 8kg 8kg
Max Power Consumption ≤700w/㎡ ≤700w/㎡ ≤700w/㎡ ≤700w/㎡
Average Power Consumption ≤350w/㎡ ≤350w/㎡ ≤350w/㎡ ≤350w/㎡
Viewing Angle H:140º  V:120º H:140º  V:120º
Refresh Rate 1920Hz/3840Hz 1920Hz/3840Hz
Gray Scale 14-16bit 14-16bit
IP Rating Front IP65,Rear IP54 Front IP65,Rear IP54
Operating Humidity 10%-90%RH 10%-90%RH
Operating Temperature -20℃~+45℃ -20℃~+45℃
Max. Stacking 10pcs 20pcs
Max. Hanging 10pcs 20pcs
Lifetime 50,000 hrs 50,000 hrs
Storage Temp/Humidity -40℃~+60℃;10%-60%RH -40℃~+60℃;10%-60%RH
