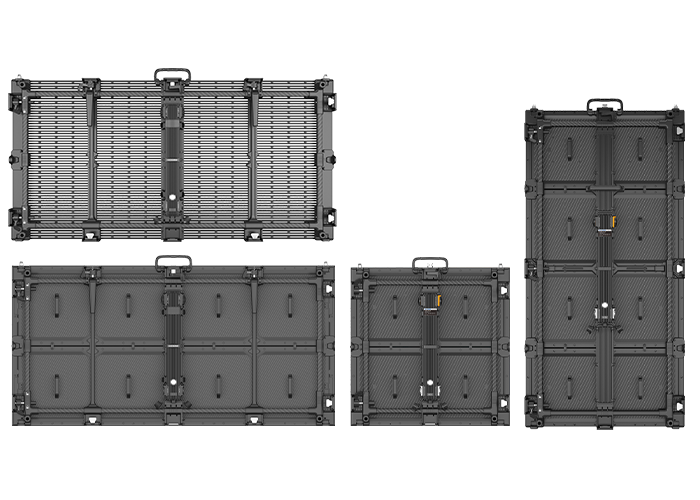

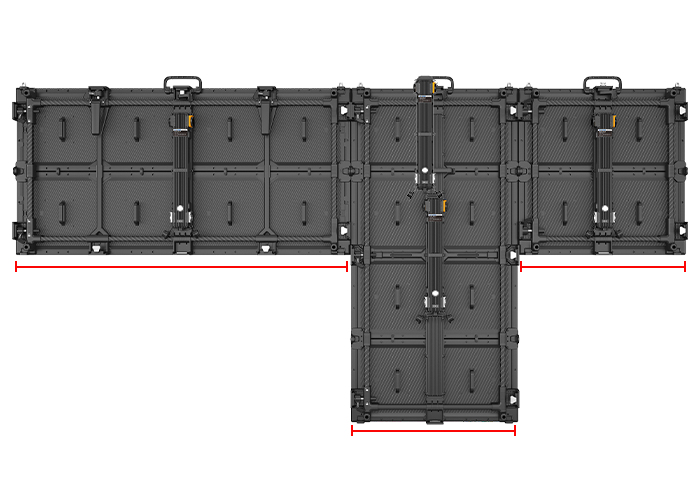

Mix Splicing
The CB series features high compatibility, allowing cabinets across the entire range to be mixed and combined interchangeably.

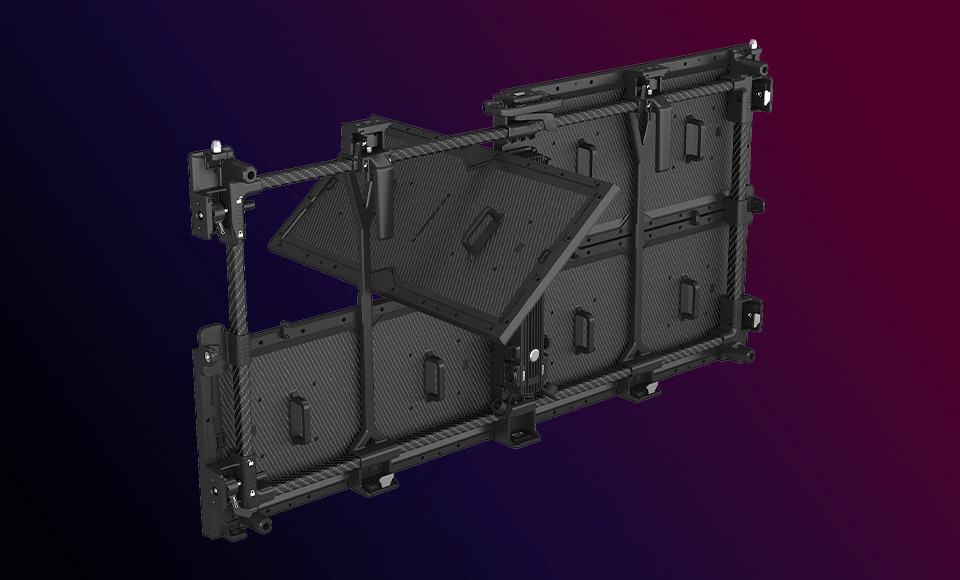

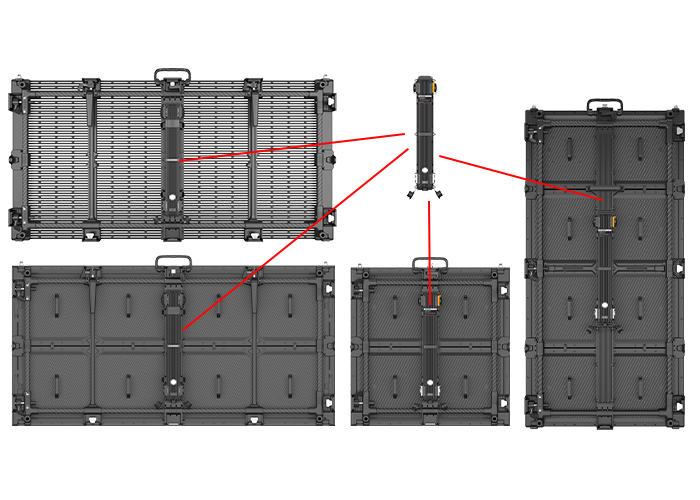

Universal Integrated Back Cover(Optional)
The back cover of full range of cabinets can be used interchangeably without running-in, and they fit perfectly, which improves the flexibility and applicability of the product and saves time for the maintenance .

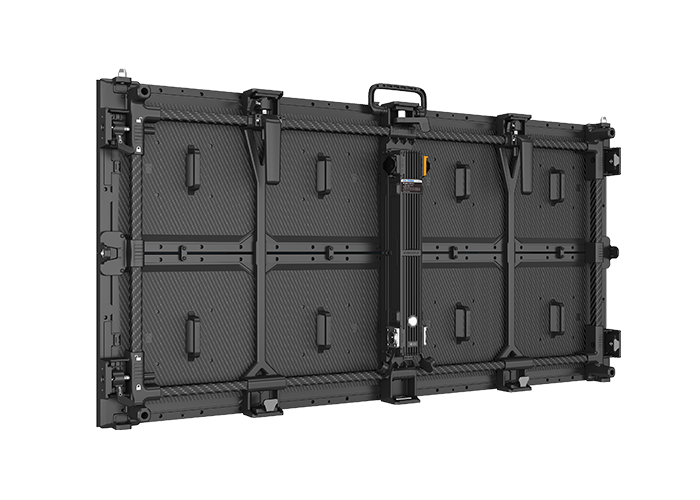

The design of the three lifting locks for big panel is optimized, making the assembly more stable and operation more convenient.
Rich layers of color and smooth transitions of detail provide a more
real-world representation of color and brightness.
| Application Scenario | indoor | ouydoor | ||||||
| Model No. | CB-S/CB-H/CB-VⅡ2.6 | CB-S/CB-H/CB-VⅡ2.9 | CB-S/CB-H/CB-VⅡ3.9 | CB-SⅡ2.9 | CB-S/CB-H/CB-VⅡ3.9 | CB-S/CB-H/CB-VⅡ4.8 | CB-S/CB-VⅡ5.2 | CB-HⅡ3.9-7.8 |
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 2.9mm | 3.9mm | 4.8mm | 5.2mm | 3.9-7.8mm |
| LED Type | SMD1515 | SMD2020 | SMD2020 | SMD1515
White/Black |
SMD1921
White/Black |
SMD1921
White/Black |
SMD1921
White/Black |
SMD1921
White/Black |
| Packaging techinque | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Density | 147456pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ | 43264pixel/㎡ | 36864pixel/㎡ | 32768pixel/㎡ |
| Panel Dimension | CB-SⅡ:500mm*500mm*74.5mm CB-VⅡ:500mm*1000mm*74.5mm CB-HⅡ:1000mm*500mm*74.5mm |
CB-SⅡ:500mm*500mm*74.5mm CB-VⅡ:500mm*1000mm*74.5mm CB-HⅡ:1000mm*500mm*74.5mm |
CB-SⅡ:500mm*500mm*74.5mm CB-VⅡ:500mm*1000mm*74.5mm CB-HⅡ:1000mm*500mm*74.5mm |
500mm*500mm*74.5mm | CB-SⅡ:500mm*500mm*74.5mm CB-VⅡ:500mm*1000mm*74.5mm CB-HⅡ:1000mm*500mm*74.5mm |
CB-SⅡ:500mm*500mm*74.5mm CB-VⅡ:500mm*1000mm*74.5mm CB-HⅡ:1000mm*500mm*74.5mm |
CB-SⅡ:500mm*500mm*74.5mm CB-VⅡ:500mm*1000mm*74.5mm |
1000mm*500mm*74.5mm |
| Panel Resolution | CB-SⅡ:192*192pixel CB-VⅡ:192*384pixel CB-HⅡ:384*192pixel |
CB-SⅡ:168*168pixel CB-VⅡ:168*336pixel CB-HⅡ:336*168pixel |
CB-SⅡ:128*128pixel CB-VⅡ:128*256pixel CB-HⅡ:256*128pixel |
168*168pixel | CB-SⅡ:128*128pixel CB-VⅡ:128*256pixel CB-HⅡ:256*128pixel |
CB-SⅡ:104*104pixel CB-VⅡ:104*208pixel CB-HⅡ:208*104pixel |
CB-SⅡ:96*96pixel CB-VⅡ:96*192pixel |
256*64pixel |
| Scan Rate | 1/24 | 1/21 | 1/16 | 1/21 | 1/16或1/8 | 1/13 | 1/8 | 1/16 or 1/8 |
| Brightness | 800-1000nits | General Brightness for Black LEDs: 1800-2200nits High Brightness for Black LEDs: 3000-3500nits General Brightness for White LEDs: 3500-4500nit |
General Brightness for Black LEDs: 2000-2500nits High Brightness for Black LEDs: 3000-3500nits General Brightness for White LEDs: 4000-4500nits |
1/16 General Brightness for Black LEDs: 1500-2000nits 1/8 High Brightness for Black LEDs: 2500-3000nits 1/16 General Brightness for White LEDs: 3000-4000nit |
||||
| Refresh Rate | 3840Hz/7680Hz | |||||||
| Gray Scale | 14-16Bit | |||||||
| Color Temperature | 6500-9500K | |||||||
| Panel Weight | CB-SⅡ：4.9kg±10%；CB-VⅡ: 8.5kg±10%；CB-HⅡ :8.2kg±10% | |||||||
| Cabinet Material | 压铸镁+碳纤维 | |||||||
| Max Power Consumption | 580W/㎡ | 580W/㎡ | ||||||
| Ave Power Consumption | 290W/㎡ | 290W/㎡ | ||||||
| Viewing Angle | H:160°/V:140° | |||||||
| Working Voltage | AC200-240V~50/60Hz或AC100-240V~50/60Hz | |||||||
| IP Rating | IP30 | Front IP65/RearIP54 | ||||||
| Serviceability | Rear | |||||||
| Curve | -7.5°/-5°/-2.5°/0°/+2.5°/+5°/+7.5° | |||||||
| Max Stacking/Hanging | 10m | |||||||
| Lifespan | 50000H | |||||||
| Operating Temp/Humidity | -20℃~+45℃；10%~60%RH | -20℃~+45℃；10%~90%RH | ||||||
| Storage Temp/Humidity | -40℃~+60℃；10%~60%RH | |||||||
| Processing platform | Novastar/Colorlight/Magnimage | |||||||
| Product Certification | CCC/CE/MET/FCC | |||||||
