Producto LE Series

LE Series

  • with Touring Frame

  • Curving Options

  • Wide Viewing Angle

  • Easy Repair

  • Full Waterproof

Specification

•Weight:
LE 14.5kg±10%
LE mini  10.5kg±10%

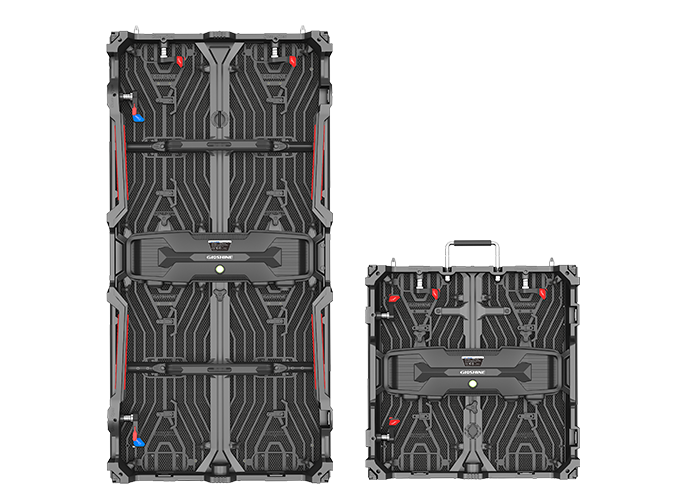

•Dimension(W*H*D):
LE 500*1000*87mm
LE mini 500*500*86mm

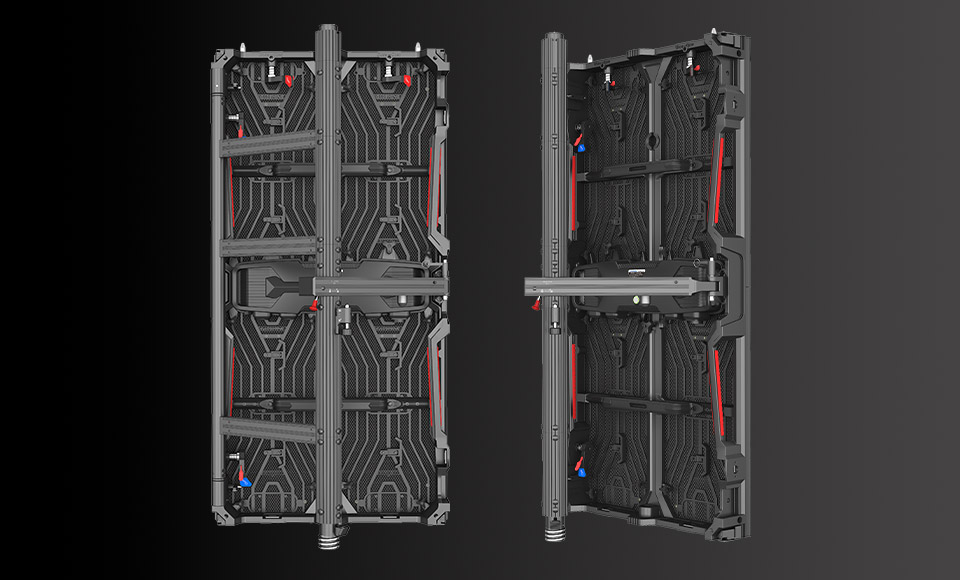

Structure

LE Series Outdoor HD LED Screen

Fully upgrade of frame design.

Magnetic Module + integrate power box.

Corner Protection.

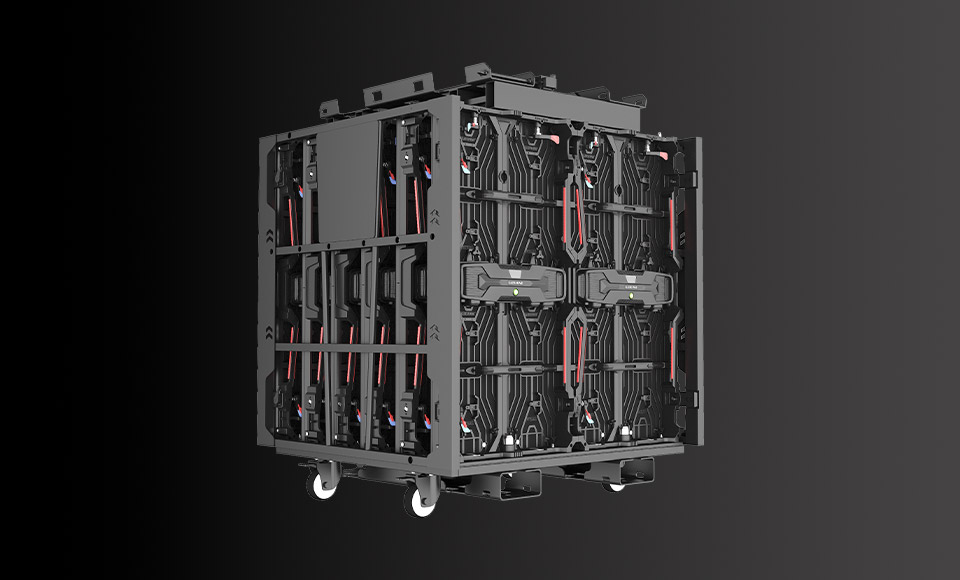

Tour frame & Transport Dolly available, Friendly for big festival.

LE Series

LE Series won iF DESIGN AWARD 2020, fully upgraded in 2023

Paramétros técnicos

Model No.

LE3.91(Outdoor)

LE4.81(Outdoor)

LE-mini3.91(Outdoor)

LE-mini4.81(Outdoor)

Pixel Pitch

3.91mm

4.81mm

3.91mm

4.81mm

Module Dimension (W*H*D)

250mm×500mm×17mm   9.8" ×19.7" ×0.7"

250mm×500mm×17mm   9.8" ×19.7" ×0.7"

IP Rating

Front IP65,Rear IP54

Front IP65,Rear IP54

Front IP65,Rear IP54

Front IP65,Rear IP54

Max. Stacking、Hanging

10pcs

10pcs

20pcs

20pcs

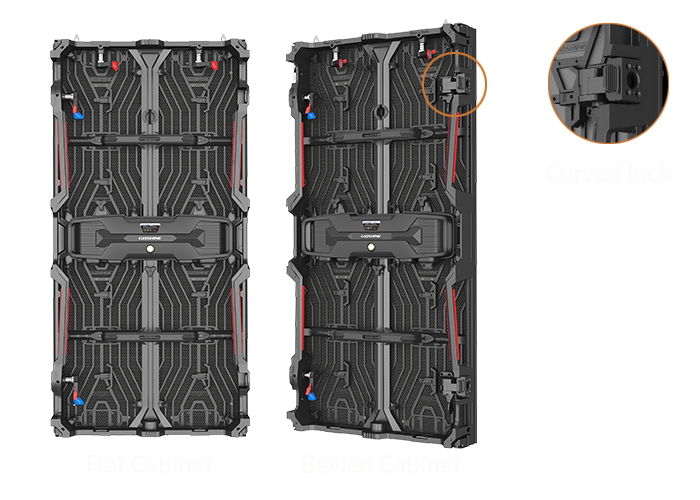

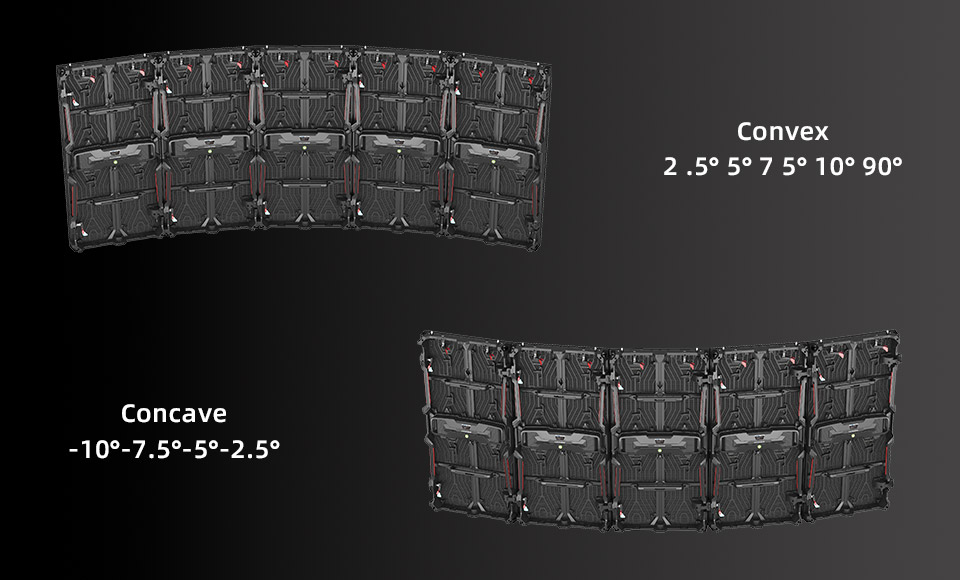

Curve(Optional)

-10 ° -7.5 ° -5 ° -2.5 ° 0 ° 2.5 ° 5  ° 7.5 °  10 °
