Outdoor

Vertical Splicing & Cube Shapes

Quick Maintenance

Magnetic Module, More Efficient Installation

Quick Front/Rear Maintenance

HD Display，Live Color Rendition，Excellent Details Present.

IP Rating

DN & DN Plus Outdoor Version

Front IP65 Rear IP54

Rain & Dust Proof

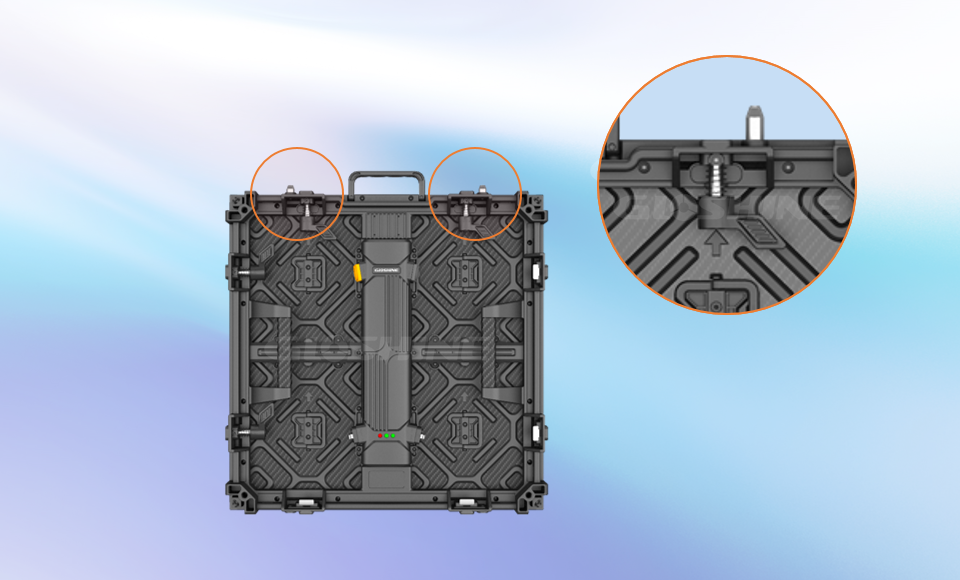

Dual Top Locks Design

Dual top locks on cabinet, quick installation, more secure.
Anti-collision Design(Optional)

Protecting corner lamp beads from being damaged by collisions.

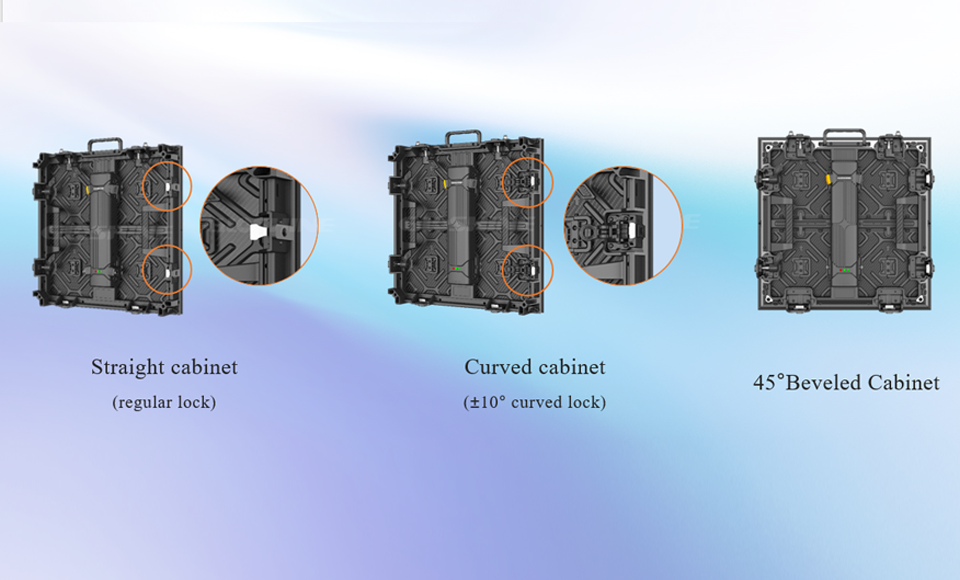

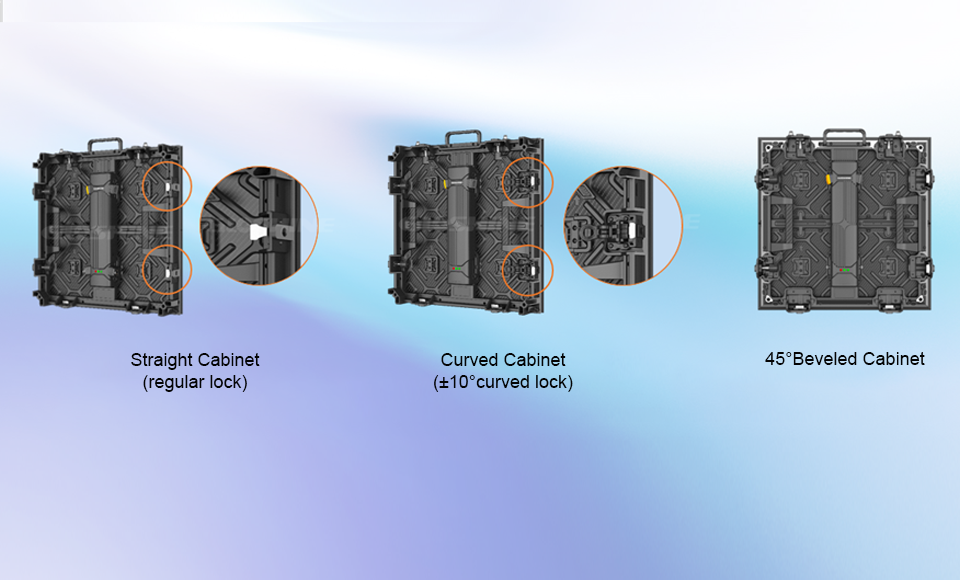

Multiple Cabinets for Option

DN series has 3 types of cabinets: straight cabinet, curved cabinet, and 45° beveled cabinet.
Curved Shape

DN & DN Plus Series available splicing for curved shape, easily radian adjustment, efficiently installation.

Paramétros técnicos

Model No.	DN-B/DN PLUS-B 2.9(Outdoor)	DN-B/DN PLUS-B 3.9(Outdoor)	DN-B/DN PLUS-B 4.8(Outdoor)
Pixel Pitch	2.9mm	3.9mm	4.8mm
LED Type	SMD1415	SMD1921	SMD1921
Pixel Density	112896 pixel/㎡	65536 pixel/㎡	43264 pixel/㎡
Panel Resolution	168*336 pixel	128*256 pixel	104*208 pixel
Panel Resolution	168*168 pixel	128*128 pixel	104*104 pixel
Scan Rate	1/21	1/8 or 1/16	1/13
Brightness	2500-3000	2800-3100nits	2800-3100nits
Color Temperature	6500-9500K
Panel Dimension	DN：500mm500mm76mm DN PLUS：500mm1000mm76mm
Panel Weight	DN：7.2kg±10% DN PLUS：12.5kg±10%
Cabinet Material	Die-Casting Cabinet
Max Power Consumption	≤580w/㎡ or ≤720w/㎡
Ave Power Consumption	≤290w/㎡ or ≤360w/㎡
Viewing Angle	H:160°V:140°
Refresh Rate	3840Hz/7680Hz
Gray Scale	14-16bit
Working Voltage	AC200-240V~50/60Hz or AC100-240V~50/60Hz
IP Rating	Front IP65，Rear IP54
Curve	Curved cabinet(±10° curved lock):-10°/-7.5°/-5/-2.5°/0°/2.5°/5°/7.5/10°/90° Curved cabinet(±7.5° curved lock):-7.5°/-5/-2.5°/0°/2.5°/5°/7.5°/90° 45° beveled cabinet(only ±10° curved lock):-10°/-7.5°/-5/-2.5°/0°/2.5°/5°/7.5/10°/90°
Max Stacking/Hanging	10m
Lifetime	50000h
Operating Temp/Humidity	-20℃~+45℃；10%~90%RH
Storage Temp/Humidity	-40℃~+60℃；10%~60%RH
