Indoor/Ouutdoor

Enhanced Cabinet Strength

Featuring an integrated cabinet structure design, the robust and aesthetically cabinet frame contribute to improved overall structural integrity.

Indoor & Outdoor Flexible LED Display

Single Panel Max. Curved ±45°/90°(Optional)

Cylindrical Shape

45° Cabinet: Cylindrical shape can be achieved by merely 8 cabinets, minimum outside diameter is 1.273m

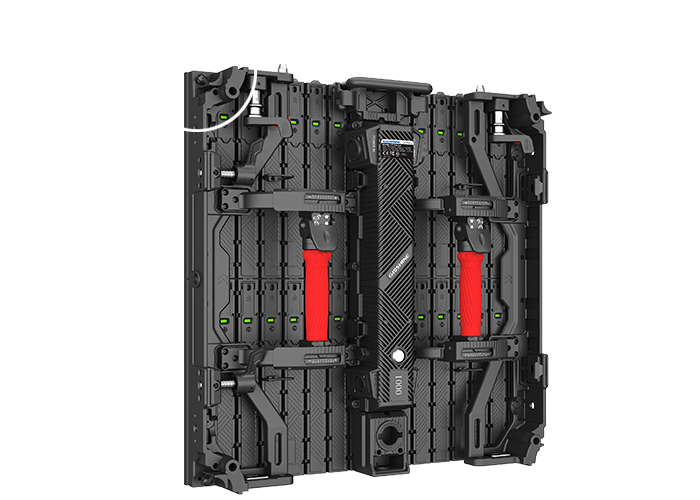

Patent Moving Mechanism Design

Utilizing a patented moving mechanism, the module positioning pins allow for precise on-demand adjustment, resulting in a clean and aesthetic appearance for shooting effects, and allowing for operation by a single person. The dual flexible module design minimizes gaps, ensures smooth connections, and delivers excellent color and brightness uniformity.
Integrated Power Box

Power supply, receiving card, and HUB board all in one power box for easy and efficient maintenance.
Wide Viewing Angle

•With H:160°, V:140° viewing angle, the picture is complete with no shadows.

•Ultra HD, Vivid Colors, Detailed Reproduction

Paramétros técnicos

Application Scenario	Indoor				Outdoor
Model No.	AR Pro1.9	AR Pro2.6	AR Pro2.9	AR Pro3.9	AR Pro2.9	AR Pro3.9
Pixel Pitch	1.9	2.6	2.9	3.9	2.9	3.9
Packaging techinque	GOB	GOB	GOB	GOB	SMD+PC	SMD+PC
Panel Dimension	500mm500mm83mm	500mm500mm83mm	500mm500mm85mm	500mm500mm85mm	500mm500mm85mm	500mm500mm85mm
Panel Resolution	256*256pixel	192*192pixel	168*168pixel	128*128pixel	168*168pixel	128*128pixel
Panel Weight	8.5kg±10%				11.6kg±10%
Cabinet Material	Die-Casting Aluminum
Viewing Angle	H:160°/V:160°
IP Rating	Front IP31				IP65
Serviceability	Front Maintenance
