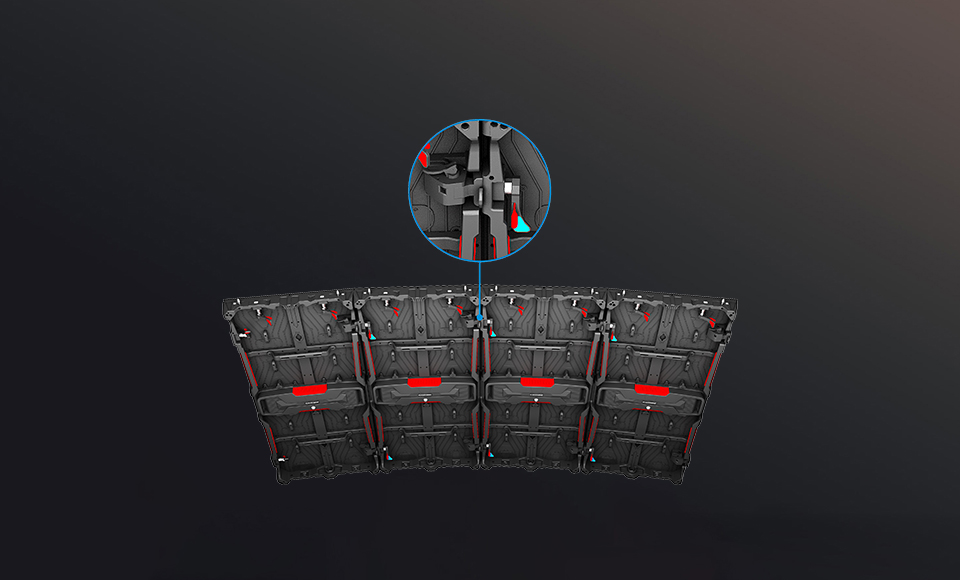

Flexible and easy to install in either concave or canvex configuration. LEGEND series is preferred for both outdoor stage design or fixed installation.
LEGEND series and LEGEND MINI series have a compact structure, stable performance and easy to maintenance.

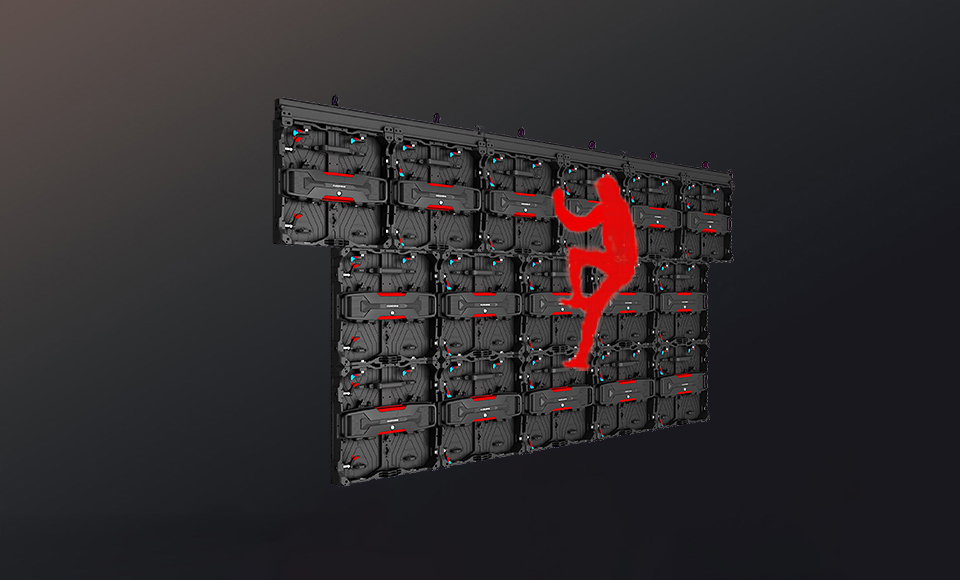

LEGEND series and LEGEND MINI series support climbing after installation. (caution: with safety belt when climbing)

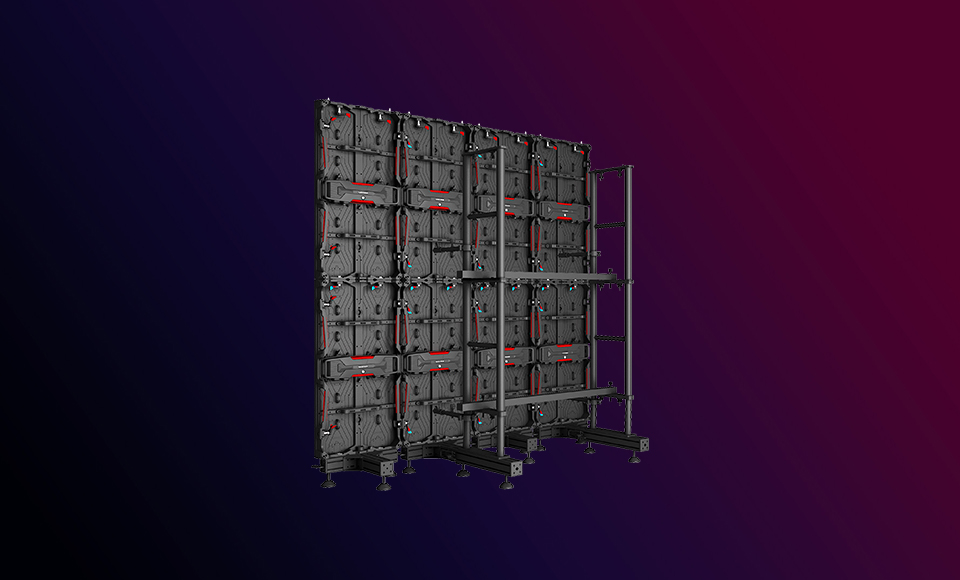

Stacking installation 10m maximum in height.

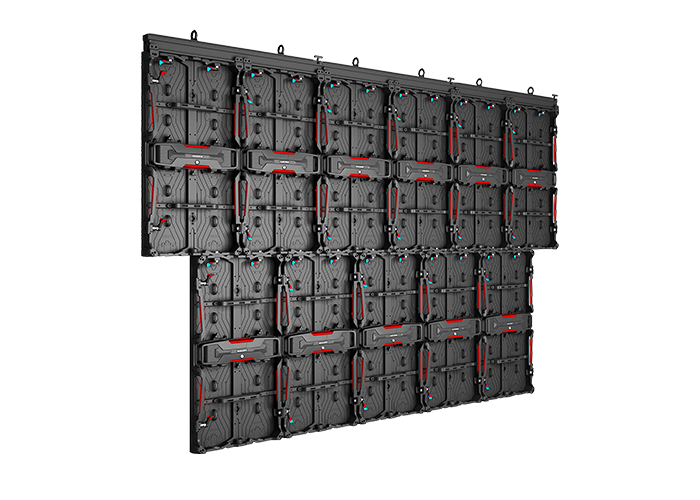

Hanging installation 10m maximum in height.
| Model No. | Legend 3.91(Outdoor) | Legend 4.81(Outdoor) | Legend 5.95(Outdoor) | Legend mini 2.97(Outdoor) | Legend mini 3.91(Outdoor) | Legend mini 4.81(Outdoor) | Legend mini 5.95(Outdoor) |
| Pixel Pitch | 3.91mm | 4.81mm | 5.95mm | 2.97mm | 3.91mm | 4.81mm | 5.95mm |
| LED Type | SMD1921 | SMD1515 | SMD1921 | ||||
| Pixel Density | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ |
| Brightness | 3000-5000nits | 3000-5000nits | |||||
| Color Temperature | 6500-9500k | 6500-9500k | |||||
| Panel Dimension(W*H*D) | 500×1000×86mm / 19.7"×39.4"×3.4" | 500×500×86mm / 19.7"×19.7"×3.4" | |||||
| Panel Resolution | 128*256pixel | 104*208pixel | 84*168pixel | 168*168pixel | 128*128pixel | 104*104pixel | 84*84pixel |
| Panel Weight | 13.9kg/30.64lb | 8.80kg/18.74lb | |||||
| Cabinet Material | Magnesium Alloy | Magnesium Alloy | |||||
| Max Power Consumption | ≤800w/㎡ | ≤800w/㎡ | ≤800w/㎡ | ≤800w/㎡ | ≤800w/㎡ | ||
| Average Power Consumption | ≤400w/㎡ | ≤400w/㎡ | ≤400w/㎡ | ≤400w/㎡ | ≤400w/㎡ | ||
| Viewing Angle | H:160º V:140º | ||||||
| Refresh Rate | 1920Hz/3840Hz | ||||||
| Gray Scale | 14-16bit | ||||||
| IP Rating | Front IP65,Rear IP54 | ||||||
| Operating Humidity | 10%-90%RH | ||||||
| Operating Temperature | ‘-20℃～+40℃ | ||||||
| Max. Stacking | 10m | ||||||
| Max. Hanging | 10m | ||||||
| Lifetime | 50,000 hrs | ||||||
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH |
