Innovative 3rd Generation Rental LED Display

All-in-one control unit, integrating receiver card, power supply, hub card. High stability, fast replacement.

Special circuit design on the PCB to make the LED screen anti-static. Better protection for the LED screen

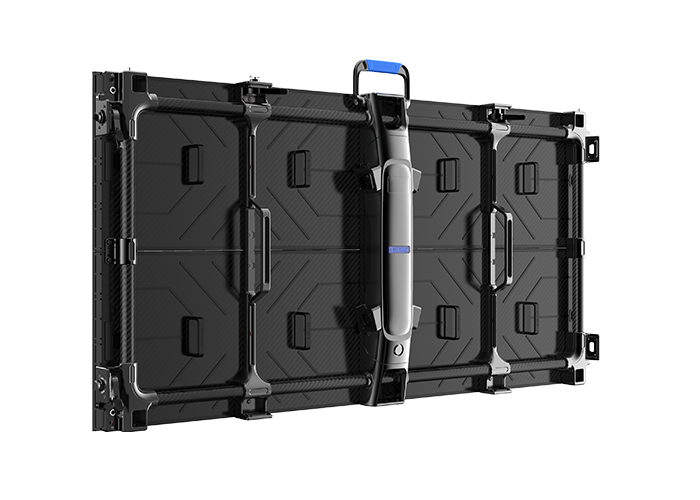

Ultra Slim

Thickness only 68mm

Carbon Fiber & Magnesium Alloy

More than light weight
Modular Design

All-in-one control unit, integrating receiver card, power supply, hub card. High stability, fast replacement.
Fast installation

One person can do the installation easily and quickly with the assistance of magnet
Corner (optional)

Support 90° fast setup

Technical parameter

Model No.	Carbon 2.60(Indoor)	Carbon 2.97(Indoor)	Carbon 3.91(Indoor)	Carbon 3.91(Outdoor)	Carbon 4.81(Outdoor)	Carbon 6.94(Outdoor)
Pixel Pitch	2.60mm	2.97mm	3.91mm	3.91mm	4.81mm	6.94mm
LED Type	SMD1515	SMD2020	SMD2020	SMD1921	SMD1921	SMD1921
Pixel Density	147456pixel/㎡	112896pixel/㎡	65536pixel/㎡	65536pixel/㎡	43264pixel/㎡	28224pixel/㎡
Brightness	800-1300nits	1000-1300nits	600-900nits	3000-4500nits	4000-5000nits	4000-5000nits
Color Temperature				6500-9500k
Scan	1/24		1/16	1/8	1/13	1/7

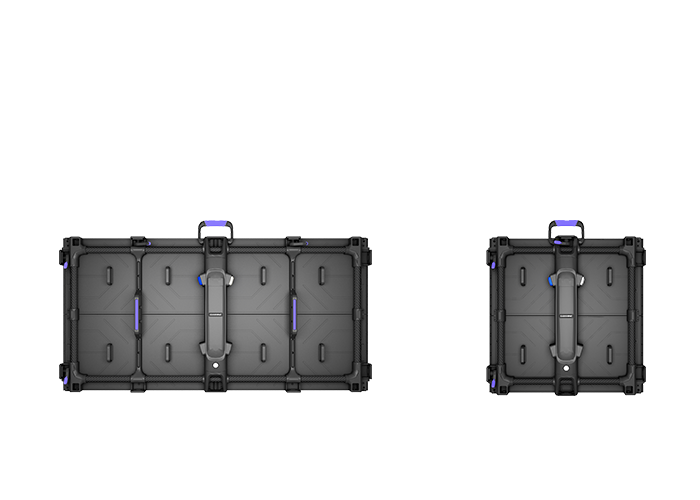

Panel Dimension(WHD)	500mm×500mm×68mm /19.7"×19.7"×2.6"			500mm×1000mm×68mm /19.7"×39.4"×2.6"
Panel Resolution	192×192pixel	168×168pixel	128×256pixel	128×256pixel	104×208pixel	72×144pixel
Panel Weight	4.30kg/9.48lb	4.30kg/9.48lb	6.47kg/14.26lb	7.30kg/16.10lb	7.30kg/16.10lb	7.30kg/16.10lb
Cabinet Material				Magnesium alloy&Carbon fibre
Max Power Consumption	≦580w/㎡	≦580w/㎡	≦320w/㎡	≦580w/㎡	≦580w/㎡	≦580w/㎡
Average Power Consumption	≦200w/㎡	≦200w/㎡	≦120w/㎡	≦200w/㎡	≦200w/㎡	≦200w/㎡
Viewing Angle				H:160º V:140º
Refresh Rate				3840Hz
Gray Scale				16bit
IP Rating	IP30	IP30	IP30	Front IP65,Rear IP54	Front IP65,Rear IP54	Front IP65,Rear IP54
Operating Humidity				10%-90%RH
Operating Temperature				-20℃～+40℃
Max. Stacking				15pcs
Max. Hanging				15pcs
Curve(Optional)				45°
Lifetime				50,000hrs
Storage Temp/Humidity				-40℃～+60℃；10%-60%RH
